24V LED STRIP REEL - 5M

IP65 24V 5m LED Strip Reel

Where to Buy
  • xcite 24v led strip 5m rgb reel transparent
Where to Buy
  • Suitable for kitchens, bars, restaurants and under counter displays
  • High output 24V LED Strip
  • Available in warm white [3000K], neutral white [4000K] or daylight [6000K]
  • 3M adhesive backing tape
  • Supplied with 1M pre-wired driver connector lead
  • 120 LEDs per metre
  • Cuttable every 50mm
  • 1000 lumens per metre
  • 9.6W per metre
3000K - WW4000K - NW6000K - DL30,000 Hours3 Years WarrantyElectrical class 3IP65
24V LED STRIP REEL - 5M Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"50%":4000,"max":6000}
Order Code Description Data sheet Buy Now
XCSR5M2465WW IP65 24V 5M LED Strip Reel - 3000K View Buy
XCSR5M2465NW IP65 24V 5M LED Strip Reel - 4000K View Buy
XCSR5M2465DL IP65 24V 5M LED Strip Reel - 6000K View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"50%":4000,"max":6000}
Order Code Description W lm lm/W lm/m W/m Data sheet Buy Now
XCSR5M2465WW IP65 24V 5M LED Strip Reel - 3000K 9.6 W/m 1000 lm/m 100 1000 9.6 View Buy
XCSR5M2465NW IP65 24V 5M LED Strip Reel - 4000K 9.6 W/m 1000 lm/m 100 1000 9.6 View Buy
XCSR5M2465DL IP65 24V 5M LED Strip Reel - 6000K 9.6 W/m 1000 lm/m 100 1000 9.6 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"50%":4000,"max":6000}
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCSR5M2465WW IP65 24V 5M LED Strip Reel - 3000K 5000 8 3 View Buy
XCSR5M2465NW IP65 24V 5M LED Strip Reel - 4000K 5000 8 3 View Buy
XCSR5M2465DL IP65 24V 5M LED Strip Reel - 6000K 5000 8 3 View Buy

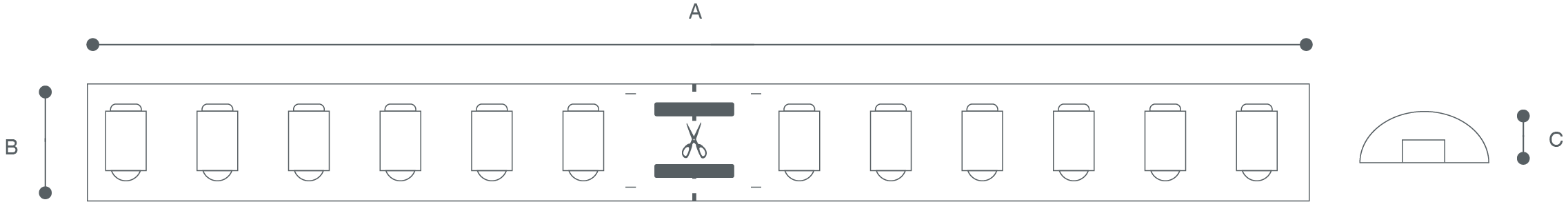

24V LED STRIP REEL - 5M Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"50%":4000,"max":6000}
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCSR5M2465WW IP65 24V 5M LED Strip Reel - 3000K Energy Class F Visit
XCSR5M2465NW IP65 24V 5M LED Strip Reel - 4000K Energy Class F Visit
XCSR5M2465DL IP65 24V 5M LED Strip Reel - 6000K Energy Class F Visit

24V LED STRIP REEL - 5M Line Drawing
