ROAD LANTERN

Road Lantern

Where to Buy

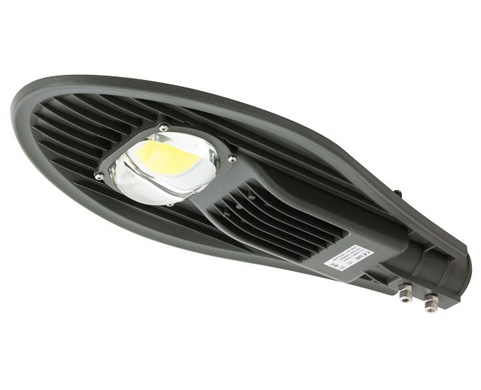

  • xcite road lantern 30w

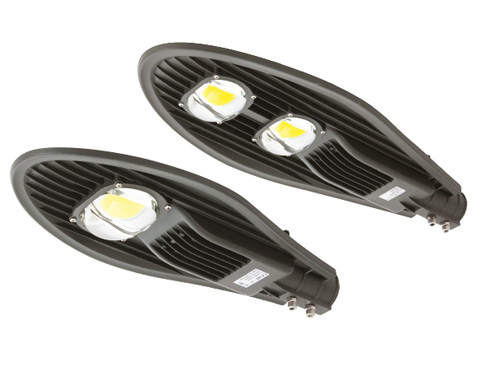

  • xcite road lantern 30w 60w
  • xcite road lantern 30w
  • xcite road lantern 30w 60w
  • Ideal for replacement of SON fixtures or Metal Halide fixtures
  • Available in 2 sizes
  • Available in 3 different outputs
  • Photocell option available
  • Mounted via side-entry 48mm [30W/60W] or 60mm dia. spigot
  • High quality toughened safety glass
  • Aluminium body finished in grey [RAL 7037]
  • Supplied as standard with daylight [6000K] LED
  • Up to 120 lumens per watt efficacy
6000K - DL30,000 Hours3 Years WarrantyIP65IK08Photocell
ROAD LANTERN Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCRL30DLPC 30W - Road Lantern - IP65 - Photocell Sensor - 6000K View Buy
XCRL30DL 30W - Road Lantern - IP65 - 6000K View Buy
XCRL60DL 60W - Road Lantern - IP65 - 6000K View Buy
XCRL60DLPC 60W - Road Lantern - IP65 - Photocell Sensor - 6000K View Buy
XCRL100DL 100W - Road Lantern - IP65 - 6000K View Buy
XCRL100DLPC 100W - Road Lantern - IP65 - Photocell Sensor - 6000K View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCRL30DLPC 30W - Road Lantern - IP65 - Photocell Sensor - 6000K 30 3600 120 View Buy
XCRL30DL 30W - Road Lantern - IP65 - 6000K 30 3600 120 View Buy
XCRL60DL 60W - Road Lantern - IP65 - 6000K 60 6700 112 View Buy
XCRL60DLPC 60W - Road Lantern - IP65 - Photocell Sensor - 6000K 60 6700 112 View Buy
XCRL100DL 100W - Road Lantern - IP65 - 6000K 100 12000 120 View Buy
XCRL100DLPC 100W - Road Lantern - IP65 - Photocell Sensor - 6000K 100 12000 120 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCRL30DLPC 30W - Road Lantern - IP65 - Photocell Sensor - 6000K 500 212 118 View Buy
XCRL30DL 30W - Road Lantern - IP65 - 6000K 500 212 68 View Buy
XCRL60DL 60W - Road Lantern - IP65 - 6000K 500 212 68 View Buy
XCRL60DLPC 60W - Road Lantern - IP65 - Photocell Sensor - 6000K 500 212 118 View Buy
XCRL100DL 100W - Road Lantern - IP65 - 6000K 715 280 88 View Buy
XCRL100DLPC 100W - Road Lantern - IP65 - Photocell Sensor - 6000K 715 280 138 View Buy
ROAD LANTERN Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCRL30DLPC 30W - Road Lantern - IP65 - Photocell Sensor - 6000K Energy Class D View Visit
XCRL30DL 30W - Road Lantern - IP65 - 6000K Energy Class D View Visit
XCRL60DL 60W - Road Lantern - IP65 - 6000K Energy Class D View Visit
XCRL60DLPC 60W - Road Lantern - IP65 - Photocell Sensor - 6000K Energy Class D View Visit
XCRL100DL 100W - Road Lantern - IP65 - 6000K Energy Class D View Visit
XCRL100DLPC 100W - Road Lantern - IP65 - Photocell Sensor - 6000K Energy Class D View Visit

ROAD LANTERN Line Drawing
