NON CORROSIVE

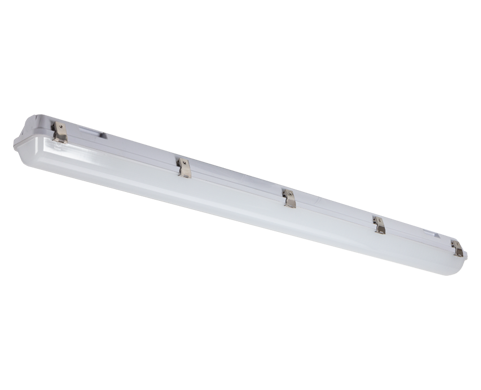

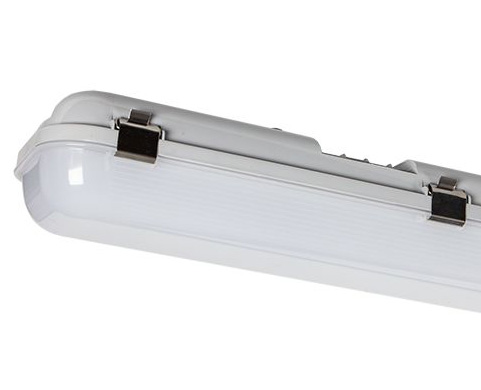

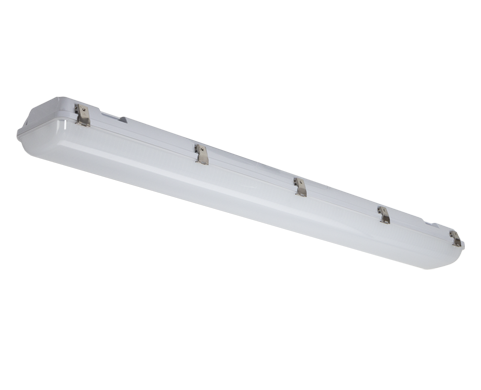

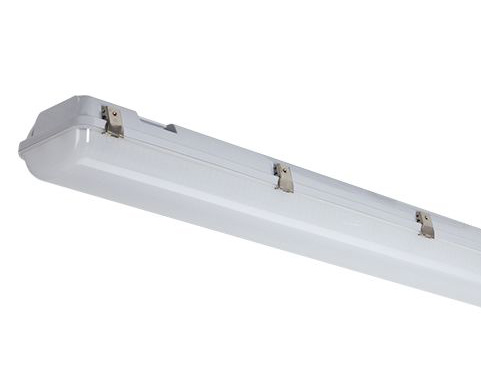

IP65 Polycarbonate Luminaire
- Ideal for replacement of linear fluorescent fixtures
- Available in 3 lengths
- Grey polycarbonate body
- Supplied with opal diffuser
- Microwave movement sensor available
- Integral emergency option available

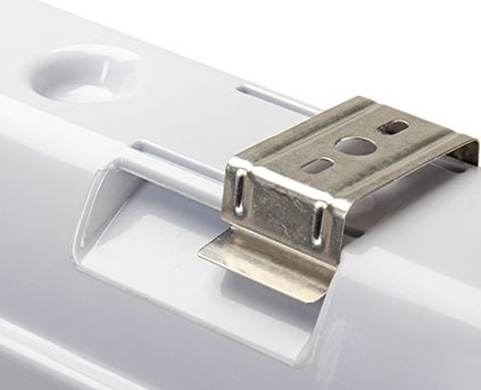

- Stainless steel fixing clips
- CRI: Ra>80
- Supplied with neutral white [4000K]
- Up to 156 lumens per watt efficacy
Note: This luminaire is not suitable for all chemical environments, please contact us for advice if this luminaire may be exposed to, oil, grease, solvents, acids, alkaline or any similar chemicals.
No
No
| Order Code | Description | Data sheet | Light Planner | Buy Now |
|---|---|---|---|---|
| XCNC14NW | 22W - 1200mm Non Corrosive - IP65 - 4000K | View | View | |
| XCNC14NWHFS | 22W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 4000K | View | Buy | |
| XCNC14NWM3 | 22W - 1200mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | View | ||
| XCNC14NWHFSM3 | 22W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC14HENW | 32W - 1200mm Non Corrosive - IP65 - 4000K | View | View | Buy |
| XCNC14HENWHFS | 32W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 4000K | View | ||
| XCNC14HENWM3 | 32W - 1200mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC14HENWHFSM3 | 32W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC24NWM3 | 42W - 1200mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC24NWHFS | 42W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 4000K | View | Buy | |
| XCNC24NW | 42W - 1200mm Non Corrosive - IP65 - 4000K | View | View | Buy |
| XCNC24NWHFSM3 | 42W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC15NWHFS | 32W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 4000K | View | ||
| XCNC15NW | 32W - 1500mm Non Corrosive - IP65 - 4000K | View | View | Buy |
| XCNC15NWHFSM3 | 32W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC15NWM3 | 32W - 1500mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | View | ||
| XCNC15HENWHFS | 51W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 4000K | View | Buy | |
| XCNC15HENW | 51W - 1500mm Non Corrosive - IP65 - 4000K | View | View | Buy |
| XCNC15HENWM3 | 51W - 1500mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC15HENWHFSM3 | 51W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | View | ||
| XCNC25NW | 65W - 1500mm Non Corrosive - IP65 - 4000K | View | View | Buy |
| XCNC25NWHFS | 65W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 4000K | View | Buy | |
| XCNC25NWM3 | 65W - 1500mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC25NWHFSM3 | 65W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC16NWHFS | 38W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 4000K | View | Buy | |
| XCNC16NW | 38W - 1800mm Non Corrosive - IP65 - 4000K | View | View | |
| XCNC16NWM3 | 38W - 1800mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | View | ||
| XCNC16NWHFSM3 | 38W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC16HENW | 63W - 1800mm Non Corrosive - IP65 - 4000K | View | View | Buy |
| XCNC16HENWHFS | 63W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 4000K | View | Buy | |
| XCNC16HENWHFSM3 | 63W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC16HENWM3 | 63W - 1800mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC26NWHFSM3 | 77W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC26NWM3 | 77W - 1800mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | View | Buy | |
| XCNC26NWHFS | 77W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 4000K | View | Buy | |
| XCNC26NW | 77W - 1800mm Non Corrosive - IP65 - 4000K | View | View | Buy |
No
No
| Order Code | Description | W | lm | lm/W | Data sheet | Light Planner | Buy Now |
|---|---|---|---|---|---|---|---|
| XCNC14NW | 22W - 1200mm Non Corrosive - IP65 - 4000K | 22 | 3000 | 136 | View | View | |
| XCNC14NWHFS | 22W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 22 | 3000 | 136 | View | Buy | |
| XCNC14NWM3 | 22W - 1200mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 22 | 3000 | 136 | View | ||
| XCNC14NWHFSM3 | 22W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 22 | 3000 | 136 | View | Buy | |
| XCNC14HENW | 32W - 1200mm Non Corrosive - IP65 - 4000K | 32 | 5000 | 156 | View | View | Buy |
| XCNC14HENWHFS | 32W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 32 | 5000 | 156 | View | ||
| XCNC14HENWM3 | 32W - 1200mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 32 | 5000 | 156 | View | Buy | |
| XCNC14HENWHFSM3 | 32W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 32 | 5000 | 156 | View | Buy | |
| XCNC24NWM3 | 42W - 1200mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 42 | 5100 | 121 | View | Buy | |
| XCNC24NWHFS | 42W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 42 | 5100 | 121 | View | Buy | |
| XCNC24NW | 42W - 1200mm Non Corrosive - IP65 - 4000K | 42 | 5100 | 121 | View | View | Buy |
| XCNC24NWHFSM3 | 42W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 42 | 5100 | 121 | View | Buy | |
| XCNC15NWHFS | 32W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 32 | 4300 | 144 | View | ||
| XCNC15NW | 32W - 1500mm Non Corrosive - IP65 - 4000K | 32 | 4300 | 144 | View | View | Buy |
| XCNC15NWHFSM3 | 32W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 32 | 4300 | 144 | View | Buy | |
| XCNC15NWM3 | 32W - 1500mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 32 | 4300 | 144 | View | ||
| XCNC15HENWHFS | 51W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 51 | 7000 | 137 | View | Buy | |
| XCNC15HENW | 51W - 1500mm Non Corrosive - IP65 - 4000K | 51 | 7000 | 137 | View | View | Buy |
| XCNC15HENWM3 | 51W - 1500mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 51 | 7000 | 137 | View | Buy | |
| XCNC15HENWHFSM3 | 51W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 51 | 7000 | 137 | View | ||
| XCNC25NW | 65W - 1500mm Non Corrosive - IP65 - 4000K | 65 | 8000 | 123 | View | View | Buy |
| XCNC25NWHFS | 65W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 65 | 8000 | 123 | View | Buy | |
| XCNC25NWM3 | 65W - 1500mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 65 | 8000 | 123 | View | Buy | |
| XCNC25NWHFSM3 | 65W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 65 | 8000 | 123 | View | Buy | |
| XCNC16NWHFS | 38W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 38 | 4600 | 118 | View | Buy | |
| XCNC16NW | 38W - 1800mm Non Corrosive - IP65 - 4000K | 38 | 4600 | 118 | View | View | |
| XCNC16NWM3 | 38W - 1800mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 38 | 4600 | 118 | View | ||
| XCNC16NWHFSM3 | 38W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 38 | 4600 | 118 | View | Buy | |
| XCNC16HENW | 63W - 1800mm Non Corrosive - IP65 - 4000K | 63 | 8800 | 140 | View | View | Buy |
| XCNC16HENWHFS | 63W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 63 | 8800 | 140 | View | Buy | |
| XCNC16HENWHFSM3 | 63W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 63 | 8800 | 140 | View | Buy | |
| XCNC16HENWM3 | 63W - 1800mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 63 | 8800 | 140 | View | Buy | |
| XCNC26NWHFSM3 | 77W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 77 | 9500 | 123 | View | Buy | |
| XCNC26NWM3 | 77W - 1800mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 77 | 9500 | 123 | View | Buy | |
| XCNC26NWHFS | 77W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 77 | 9500 | 123 | View | Buy | |
| XCNC26NW | 77W - 1800mm Non Corrosive - IP65 - 4000K | 77 | 9500 | 123 | View | View | Buy |
No
No

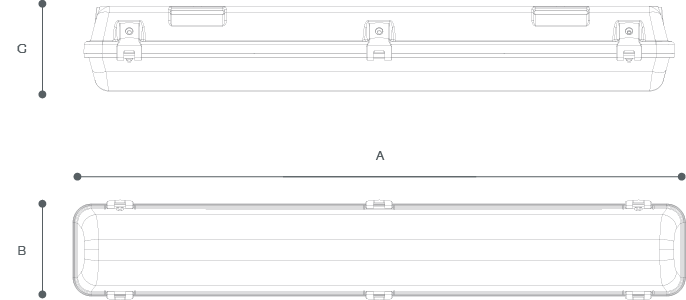

| Order Code | Description | A (mm) |
B (mm) |
C (mm) |
Data sheet | Light Planner | Buy Now |
|---|---|---|---|---|---|---|---|
| XCNC14NW | 22W - 1200mm Non Corrosive - IP65 - 4000K | 1260 | 98 | 93 | View | View | |
| XCNC14NWHFS | 22W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 1260 | 98 | 93 | View | Buy | |
| XCNC14NWM3 | 22W - 1200mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 1260 | 98 | 93 | View | ||
| XCNC14NWHFSM3 | 22W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 1260 | 98 | 93 | View | Buy | |
| XCNC14HENW | 32W - 1200mm Non Corrosive - IP65 - 4000K | 1260 | 98 | 93 | View | View | Buy |
| XCNC14HENWHFS | 32W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 1260 | 98 | 93 | View | ||
| XCNC14HENWM3 | 32W - 1200mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 1260 | 98 | 93 | View | Buy | |
| XCNC14HENWHFSM3 | 32W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 1260 | 98 | 93 | View | Buy | |
| XCNC24NWM3 | 42W - 1200mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 1260 | 154 | 95 | View | Buy | |
| XCNC24NWHFS | 42W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 1260 | 154 | 95 | View | Buy | |
| XCNC24NW | 42W - 1200mm Non Corrosive - IP65 - 4000K | 1260 | 154 | 95 | View | View | Buy |
| XCNC24NWHFSM3 | 42W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 1260 | 154 | 95 | View | Buy | |
| XCNC15NWHFS | 32W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 1560 | 98 | 93 | View | ||
| XCNC15NW | 32W - 1500mm Non Corrosive - IP65 - 4000K | 1560 | 98 | 93 | View | View | Buy |
| XCNC15NWHFSM3 | 32W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 1560 | 98 | 93 | View | Buy | |
| XCNC15NWM3 | 32W - 1500mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 1560 | 98 | 93 | View | ||
| XCNC15HENWHFS | 51W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 1560 | 98 | 93 | View | Buy | |
| XCNC15HENW | 51W - 1500mm Non Corrosive - IP65 - 4000K | 1560 | 98 | 93 | View | View | Buy |
| XCNC15HENWM3 | 51W - 1500mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 1560 | 98 | 93 | View | Buy | |
| XCNC15HENWHFSM3 | 51W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 1560 | 98 | 93 | View | ||
| XCNC25NW | 65W - 1500mm Non Corrosive - IP65 - 4000K | 1560 | 154 | 95 | View | View | Buy |
| XCNC25NWHFS | 65W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 1560 | 154 | 95 | View | Buy | |
| XCNC25NWM3 | 65W - 1500mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 1560 | 154 | 95 | View | Buy | |
| XCNC25NWHFSM3 | 65W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 1560 | 154 | 95 | View | Buy | |
| XCNC16NWHFS | 38W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 1830 | 100 | 101 | View | Buy | |
| XCNC16NW | 38W - 1800mm Non Corrosive - IP65 - 4000K | 1830 | 100 | 101 | View | View | |
| XCNC16NWM3 | 38W - 1800mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 1830 | 100 | 101 | View | ||
| XCNC16NWHFSM3 | 38W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 1830 | 100 | 101 | View | Buy | |
| XCNC16HENW | 63W - 1800mm Non Corrosive - IP65 - 4000K | 1830 | 100 | 101 | View | View | Buy |
| XCNC16HENWHFS | 63W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 1830 | 100 | 101 | View | Buy | |
| XCNC16HENWHFSM3 | 63W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 1830 | 100 | 101 | View | Buy | |
| XCNC16HENWM3 | 63W - 1800mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 1830 | 100 | 101 | View | Buy | |
| XCNC26NWHFSM3 | 77W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K | 1830 | 158 | 102 | View | Buy | |
| XCNC26NWM3 | 77W - 1800mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K | 1830 | 158 | 102 | View | Buy | |
| XCNC26NWHFS | 77W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 4000K | 1830 | 158 | 102 | View | Buy | |
| XCNC26NW | 77W - 1800mm Non Corrosive - IP65 - 4000K | 1830 | 158 | 102 | View | View | Buy |
No
No
| Order Code | Description | Energy Class | ERP Instructions |
EPREL Site |
|---|---|---|---|---|
| XCNC14NW | 22W - 1200mm Non Corrosive - IP65 - 4000K |
|
View | Visit |
| XCNC14NWHFS | 22W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 4000K |
|
View | Visit |
| XCNC14NWM3 | 22W - 1200mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC14NWHFSM3 | 22W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC14HENW | 32W - 1200mm Non Corrosive - IP65 - 4000K |
|
View | Visit |
| XCNC14HENWHFS | 32W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 4000K |
|
View | Visit |
| XCNC14HENWM3 | 32W - 1200mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC14HENWHFSM3 | 32W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC24NWM3 | 42W - 1200mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC24NWHFS | 42W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 4000K |
|
View | Visit |
| XCNC24NW | 42W - 1200mm Non Corrosive - IP65 - 4000K |
|
View | Visit |
| XCNC24NWHFSM3 | 42W - 1200mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC15NWHFS | 32W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 4000K |
|
View | Visit |
| XCNC15NW | 32W - 1500mm Non Corrosive - IP65 - 4000K |
|
View | Visit |
| XCNC15NWHFSM3 | 32W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC15NWM3 | 32W - 1500mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC15HENWHFS | 51W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 4000K |
|
View | Visit |
| XCNC15HENW | 51W - 1500mm Non Corrosive - IP65 - 4000K |
|
View | Visit |
| XCNC15HENWM3 | 51W - 1500mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC15HENWHFSM3 | 51W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC25NW | 65W - 1500mm Non Corrosive - IP65 - 4000K |
|
View | Visit |
| XCNC25NWHFS | 65W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 4000K |
|
View | Visit |
| XCNC25NWM3 | 65W - 1500mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC25NWHFSM3 | 65W - 1500mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC16NWHFS | 38W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 4000K |
|
View | Visit |
| XCNC16NW | 38W - 1800mm Non Corrosive - IP65 - 4000K |
|
View | Visit |
| XCNC16NWM3 | 38W - 1800mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC16NWHFSM3 | 38W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC16HENW | 63W - 1800mm Non Corrosive - IP65 - 4000K |
|
View | Visit |
| XCNC16HENWHFS | 63W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 4000K |
|
View | Visit |
| XCNC16HENWHFSM3 | 63W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC16HENWM3 | 63W - 1800mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC26NWHFSM3 | 77W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC26NWM3 | 77W - 1800mm Non Corrosive - IP65 - 3hrs Maintained Emergency - 4000K |
|
View | Visit |
| XCNC26NWHFS | 77W - 1800mm Non Corrosive - IP65 - Microwave Sensor - 4000K |
|
View | Visit |
| XCNC26NW | 77W - 1800mm Non Corrosive - IP65 - 4000K |
|
View | Visit |
