CABINET LIGHT CC

Slimline Under Cupboard Cabinet Light with CCT Selector

Where to Buy
  • cabinet light cc 5w
  • cabinet light cc 3w top
  • cabinet light cc 3w side
  • cabinet light cc 5w
  • cabinet light cc 3w top
  • cabinet light cc 3w side
  • Ideal for replacing low-output linear fluorescent fixtures under cabinets.
  • Available in 5 lengths
  • CCT [3000K/4000K] adjustable via 2-way selector switch
  • Slimline profile for discreet installation
  • Supplied with essential connectors and accessories for streamlined installation.
  • Extruded plastic body
  • LED SMD modules array
  • Up to 125 lumens per watt efficacy
3000K-4000K Tunable3 Years Warranty
CABINET LIGHT CC Product Flyer Icon

Product Flyer
CABINET LIGHT CC Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCUCL3CT CABINET LIGHT CC Cabinet/Shaver Lights 3W - 3000K-4000K View Buy
XCUCL5CT CABINET LIGHT CC Cabinet/Shaver Lights 5W - 3000K-4000K View Buy
XCUCL8CT CABINET LIGHT CC Cabinet/Shaver Lights 8W - 3000K-4000K View Buy
XCUCL14CT CABINET LIGHT CC Cabinet/Shaver Lights 14W - 3000K-4000K View Buy
XCUCL16CT CABINET LIGHT CC Cabinet/Shaver Lights 16W - 3000K-4000K View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCUCL3CT CABINET LIGHT CC Cabinet/Shaver Lights 3W - 3000K-4000K 3 340 113 View Buy
XCUCL5CT CABINET LIGHT CC Cabinet/Shaver Lights 5W - 3000K-4000K 5 500 100 View Buy
XCUCL8CT CABINET LIGHT CC Cabinet/Shaver Lights 8W - 3000K-4000K 8 800 100 View Buy
XCUCL14CT CABINET LIGHT CC Cabinet/Shaver Lights 14W - 3000K-4000K 14 1600 114 View Buy
XCUCL16CT CABINET LIGHT CC Cabinet/Shaver Lights 16W - 3000K-4000K 16 2000 125 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCUCL3CT CABINET LIGHT CC Cabinet/Shaver Lights 3W - 3000K-4000K 222 23 37 View Buy
XCUCL5CT CABINET LIGHT CC Cabinet/Shaver Lights 5W - 3000K-4000K 296 23 37 View Buy
XCUCL8CT CABINET LIGHT CC Cabinet/Shaver Lights 8W - 3000K-4000K 529 23 37 View Buy
XCUCL14CT CABINET LIGHT CC Cabinet/Shaver Lights 14W - 3000K-4000K 857 23 37 View Buy
XCUCL16CT CABINET LIGHT CC Cabinet/Shaver Lights 16W - 3000K-4000K 1157 23 37 View Buy

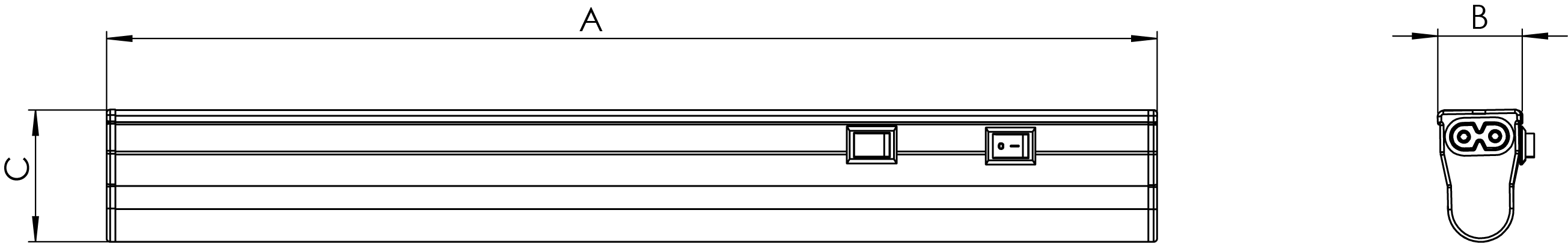

CABINET LIGHT CC Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCUCL3CT CABINET LIGHT CC Cabinet/Shaver Lights 3W - 3000K-4000K Energy Class D View Visit
XCUCL5CT CABINET LIGHT CC Cabinet/Shaver Lights 5W - 3000K-4000K Energy Class D View Visit
XCUCL8CT CABINET LIGHT CC Cabinet/Shaver Lights 8W - 3000K-4000K Energy Class D View Visit
XCUCL14CT CABINET LIGHT CC Cabinet/Shaver Lights 14W - 3000K-4000K Energy Class C View Visit
XCUCL16CT CABINET LIGHT CC Cabinet/Shaver Lights 16W - 3000K-4000K Energy Class C View Visit

CABINET LIGHT CC Line Drawing
