Info panel text
DECK LIGHT KIT
Outdoor Decking Light Kit
- Suitable for garden decking and walkways
- Available as 5-way or 10-way kit
- Choice of 6000K or CCTK [3000K/4000K] adjustable
- Adjustment via twist and locking loom system

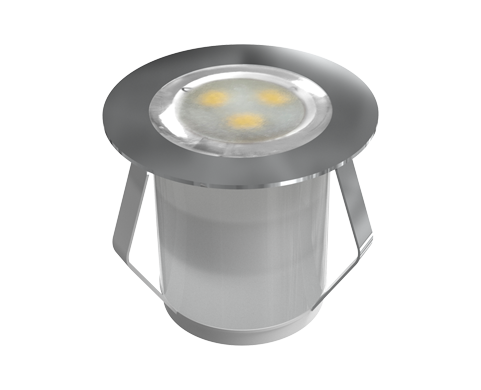

- Polished stainless steel [Grade #304] trim with polycarbonate cover
- Supplied with outdoor IP67 LED Driver
- Up to 50 lumens per watt efficacy

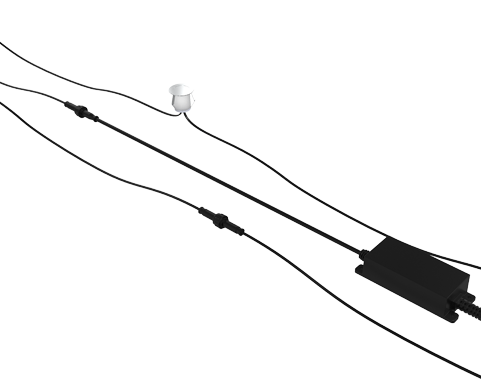

Note: Kit includes: 1 x 12V IP67 inline driver with 2.25 metres of cable and 5 or 10 x LED light fittings each with 1.5 metres of cable attached & 3 pin plug
No
No
No
No
| Order Code | Description | W | lm | lm/W | Data sheet | Buy Now |
|---|---|---|---|---|---|---|
| XCDK5CT | 4W - 5-Way Deck Light Kit - [3000K/4000K] | 4 | 150 | 38 | View | Buy |
| XCDK5DL | 4W - 5-Way Deck Light Kit - 6000K | 4 | 200 | 50 | View | Buy |
| XCDK10CT | 6W - 10-Way Deck Light Kit - [3000K/4000K] | 6 | 250 | 42 | View | Buy |
| XCDK10DL | 6W - 10-Way Deck Light Kit - 6000K | 6 | 300 | 50 | View | Buy |
No
No

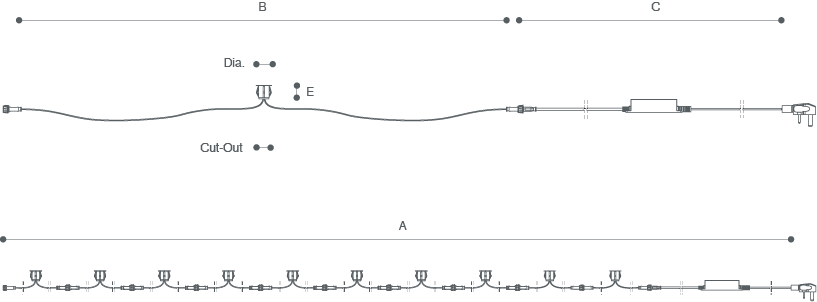

| Order Code | Description | A (mm) |
B (mm) |
C (mm) |
E (mm) |
Cut Out (mm) |
Dia. (mm) |
Data sheet | Buy Now |
|---|---|---|---|---|---|---|---|---|---|
| XCDK5CT | 4W - 5-Way Deck Light Kit - [3000K/4000K] | 10025 | 1500 | 2225 | 26 | 22 | 30 | View | Buy |
| XCDK5DL | 4W - 5-Way Deck Light Kit - 6000K | 10025 | 1500 | 2225 | 26 | 22 | 30 | View | Buy |
| XCDK10CT | 6W - 10-Way Deck Light Kit - [3000K/4000K] | 17825 | 1500 | 2225 | 26 | 22 | 30 | View | Buy |
| XCDK10DL | 6W - 10-Way Deck Light Kit - 6000K | 17825 | 1500 | 2225 | 26 | 22 | 30 | View | Buy |
No
No
| Order Code | Description |
|---|---|
| XCDK5CT | 4W - 5-Way Deck Light Kit - [3000K/4000K] |
| XCDK5DL | 4W - 5-Way Deck Light Kit - 6000K |
| XCDK10CT | 6W - 10-Way Deck Light Kit - [3000K/4000K] |
| XCDK10DL | 6W - 10-Way Deck Light Kit - 6000K |
