EM BULKHEAD

(This product is now obsolete)

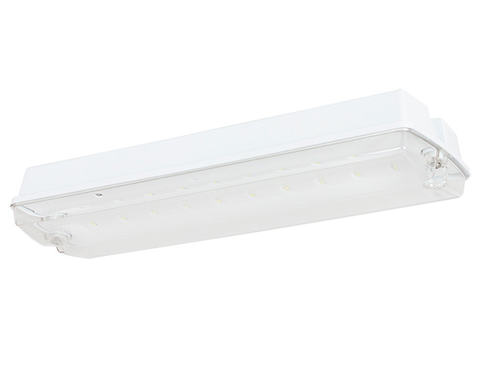

Emergency Bulkhead

Where to Buy
  • xcite em bulkhead
  • xcite em bulkhead semi recessed bezel
  • xcite em bulkhead
  • xcite em bulkhead semi recessed bezel
  • Suitable for open areas and escape routes
  • 20mm conduit side and rear cable entries for wall or ceiling fix
  • Semi recessed bezel available
  • Reduced maintenance and high performance
  • Polycarbonate body and diffuser
  • Maintained or non-maintained available
  • Supplied with self adhesive universal EURO 4 legend
  • Supplied as standard with daylight [6500K] LED
6500K - DL930,000 Hours3 Years WarrantyIP65Maintained emergency 3hr Non-maintained emergency 3hr
EM BULKHEAD Product Flyer Icon

Product Flyer
EM BULKHEAD Installation Guide Icon

Installation Sheet
Order Code Description Data sheet Buy Now
XCEMBNM3 1W - Emergency Bulkhead - 3hrs Non-Maintained Emergency View
XCEMBM3 1W - Emergency Bulkhead - 3hrs Maintained Emergency View
Order Code Description W lm Data sheet Buy Now
XCEMBNM3 1W - Emergency Bulkhead - 3hrs Non-Maintained Emergency 1 150 View
XCEMBM3 1W - Emergency Bulkhead - 3hrs Maintained Emergency 3 150 View
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCEMBNM3 1W - Emergency Bulkhead - 3hrs Non-Maintained Emergency 352 110 65 View
XCEMBM3 1W - Emergency Bulkhead - 3hrs Maintained Emergency 352 110 65 View

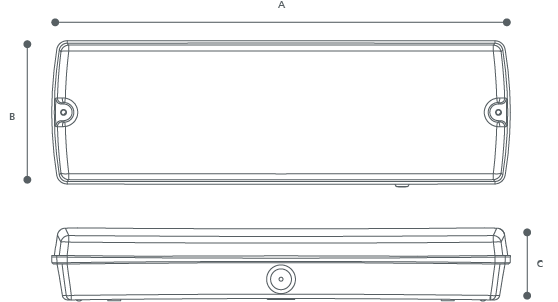

EM BULKHEAD Line Drawing
Order Code Description
XCEMBNM3 1W - Emergency Bulkhead - 3hrs Non-Maintained Emergency
XCEMBM3 1W - Emergency Bulkhead - 3hrs Maintained Emergency

EM BULKHEAD Line Drawing

Accessories

3 Years Warranty

EM BULKHEAD RECESS BEZEL
