FRD MINI CC

Recessed Fire Rated Downlight with CCTK Selector

Where to Buy

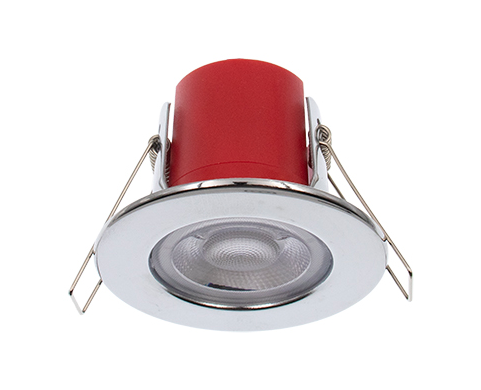

  • xcite frd mini cc pc

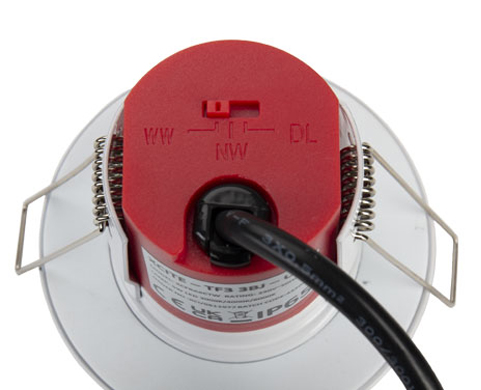

  • xcite frd mini cc switch

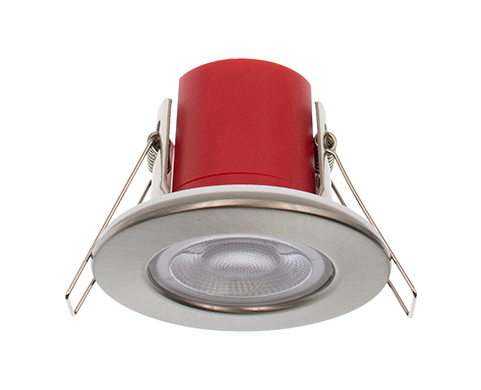

  • xcite frd mini cc sn
  • xcite frd mini quick fit connector
  • xcite frd mini cc w
  • xcite frd mini cc pc
  • xcite frd mini cc switch
  • xcite frd mini cc sn
  • xcite frd mini quick fit connector
  • xcite frd mini cc w
  • Compact fire rated downlight with AC on board driver technology
  • CCT [3000K/4000K/6000K] adjustable via 3-way selector switch
  • Dimmable as standard
  • Loop in/out mains connections with easy-fit connector
  • Convert to larger sized cut outs with the Conversion Plates
  • 30, 60 & 90 minute fire rating with solid timber joists
  • 30 minute fire rating with Staircraft I-Joist and METAL WEB Joist [Compatibility Matrix]
  • Steel body providing a high level of fire protection in accordance with Building Regulations Part B
  • White, Satin Nickel or Polished Chrome Finish
  • Up to 90 lumens per watt efficacy
Tri-Colour [3000K, 4000K, 6000K]30,000 Hours3 Years WarrantyIP65IK03Fire Rated [30,60,90 minute fire rating with solid timber joists]Fire Rated I-Joist [30 minute fire rating]Fire Rated Metal Web I-Joist [30 minute fire rating]Dimmable
FRD MINI CC Product Flyer Icon

Product Flyer
FRD MINI CC Installation Guide Icon

Installation Sheet
Order Code Description Data sheet Light Planner Buy Now
XCFRA5CTW 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - White View View
XCFRA5CTPC 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Polished Chrome View View
XCFRA5CTSN 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Satin Nickel View View Buy
Order Code Description W lm lm/W Data sheet Light Planner Buy Now
XCFRA5CTW 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - White 5 400-500 90 View View
XCFRA5CTPC 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Polished Chrome 5 400-500 90 View View
XCFRA5CTSN 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Satin Nickel 5 400-500 90 View View Buy
Order Code Description C
(mm)		 Cut Out
(mm)		 Dia.
(mm)		 Data sheet Light Planner Buy Now
XCFRA5CTW 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - White 57 60 80 View View
XCFRA5CTPC 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Polished Chrome 57 60 80 View View
XCFRA5CTSN 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Satin Nickel 57 60 80 View View Buy

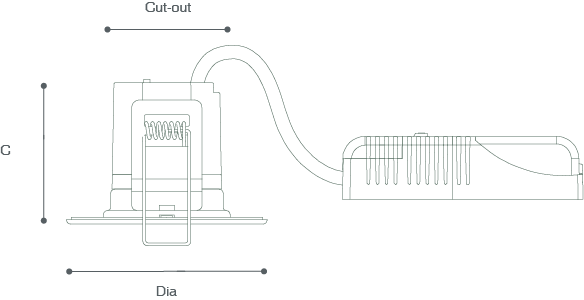

FRD MINI CC Line Drawing
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCFRA5CTW 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - White Energy Class C View Visit
XCFRA5CTPC 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Polished Chrome Energy Class C View Visit
XCFRA5CTSN 5W - Fire Rated Recessed Mini Downlight - [3000K/4000K/6000K] - Satin Nickel Energy Class C View Visit

FRD MINI CC Line Drawing
