X1 BOLLARD
A colour (CCT) and wattage selectable LED bollard designed for flexible exterior lighting. With IP65 protection and durable die-cast aluminium construction, it delivers reliable performance and controlled illumination across a wide range of outdoor environments.
- Ideal for pathways, walkways, car parks and perimeter lighting
- CCT [3000K/4000K/5000K] adjustable via 3-way selector switch
- Wattage [12W/16W/20W] adjustable via 2-way dip switch
- Weatherproof IP65 construction
- Loop in/out mains connector
- Die-cast aluminium construction designed to resist corrosion and prevent rust, finished in black (RAL 9005) or grey (RAL 9006)
![Tri-Colour [3000K, 4000K, 5000K]](/assets/images/icons_xcite/tri345.png "Tri-Colour [3000K, 4000K, 5000K]"){kind=icon}
| Order Code | Description | W | lm | lm/W | Data sheet | Buy Now |
|---|---|---|---|---|---|---|

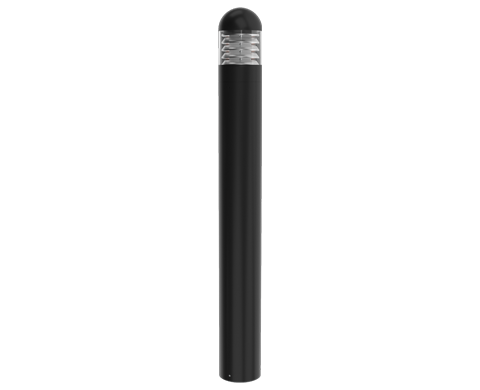

| XCBOLX1LBL | X1 Bollard - Louver - 3000K-5000K + Wattage Switchable - Black | 12W/16W/20W | 550 to 900 | 51 | View | |

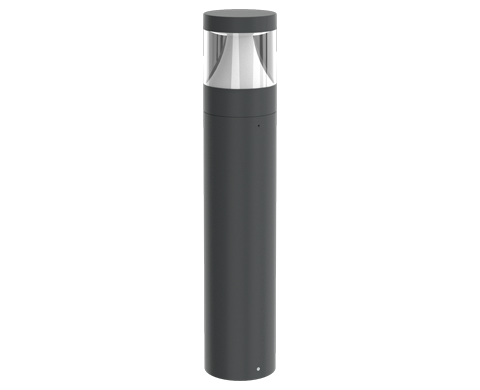

| XCBOLX1SGC | X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey | 12W/16W/20W | 1100 to 1800 | 103 | View | |

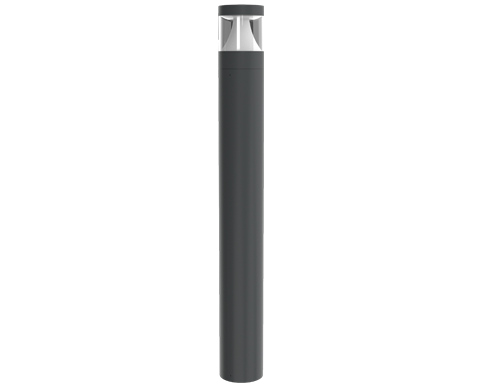

| XCBOLX1LGC | X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey | 12W/16W/20W | 1100 to 1800 | 103 | View |

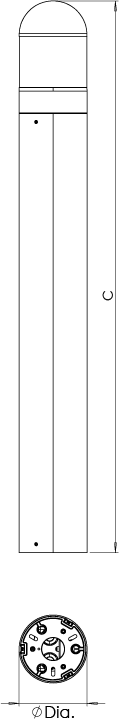

| Order Code | Description | C (mm) |
Dia. (mm) |
Data sheet | Buy Now |
|---|---|---|---|---|---|
| XCBOLX1LBL | X1 Bollard - Louver - 3000K-5000K + Wattage Switchable - Black | 1040 | 120 | View | |
| XCBOLX1SGC | X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey | 600 | 120 | View | |
| XCBOLX1LGC | X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey | 1000 | 120 | View |
| Order Code | Description |
|---|---|
| XCBOLX1LBL | X1 Bollard - Louver - 3000K-5000K + Wattage Switchable - Black |
| XCBOLX1SGC | X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey |
| XCBOLX1LGC | X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey |
