X1 BOLLARD CONE

A robust LED bollard designed for pathways, car parks and perimeter lighting. Cone distribution delivers consistent 360 degree illumination, with IP65 protection and durable construction for everyday installations.

Where to Buy
  • x1 bollard cone grey large
  • x1 bollard cone grey small
  • xcite x1 bollard base
  • xcite x1 bollard base wiring
  • x1 bollard cone grey large
  • x1 bollard cone grey small
  • xcite x1 bollard base
  • xcite x1 bollard base wiring
Where to Buy
  • Ideal for pathways, walkways, car parks and perimeter lighting
  • CCT adjustable via 3-way selector switch [3000K/4000K/5000K]
  • Wattage adjustable via 2-way dip switch [12W/16W/20W]
  • Up to 103 lumens per watt efficacy
  • Weatherproof IP65 construction
  • Ground Mounting J-BOLT KIT [sold separately]
  • Loop in/out mains connector
  • Die-cast aluminium construction designed to resist corrosion and prevent rust, finished in black [RAL 9005]
X1 BOLLARD CONE Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCBOLX1SGC X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey View
XCBOLX1LGC X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCBOLX1SGC X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey 12W/16W/20W 1100 to 1800 103 View
XCBOLX1LGC X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey 12W/16W/20W 1100 to 1800 103 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Dia.
(mm)		 Data sheet Buy Now
XCBOLX1SGC X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey 600 120 View
XCBOLX1LGC X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey 1000 120 View

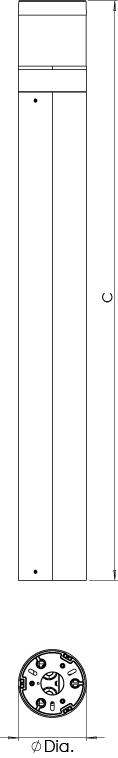

X1 BOLLARD CONE Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBOLX1SGC X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey Energy Class B Visit
XCBOLX1LGC X1 Bollard - Cone - 3000K-5000K + Wattage Switchable - Grey Energy Class B Visit

X1 BOLLARD CONE Line Drawing

Accessories

J-BOLT KIT
