X1 BULKHEAD L

Versatile bulkhead luminaire with selectable wattage and CCT options. Designed for communal areas requiring flexible, energy efficient lighting

Where to Buy

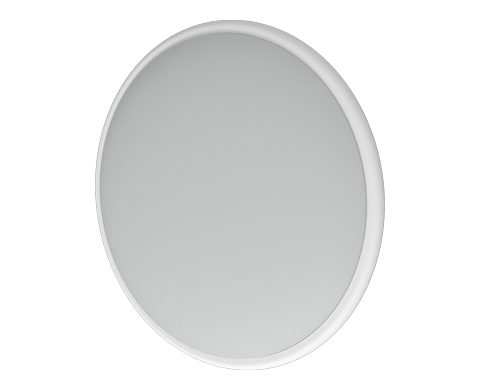

  • xcite x1 bulhead large

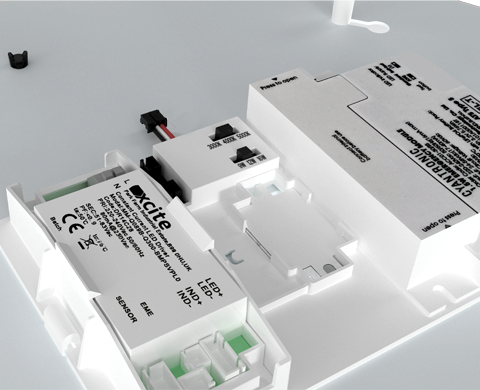

  • xcite x1 bulhead large internal2

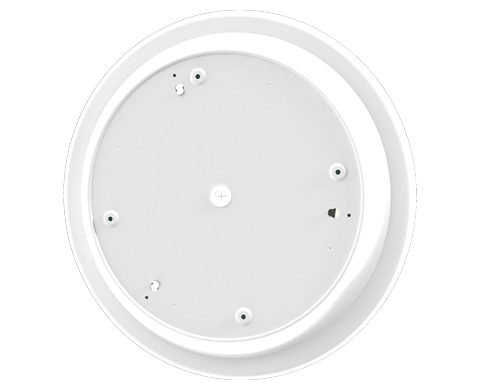

  • xcite x1 bulhead large rear

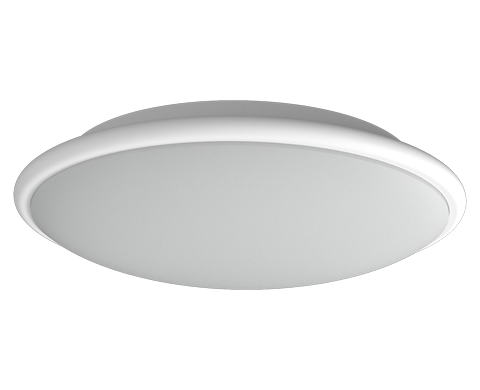

  • xcite x1 bulhead large up

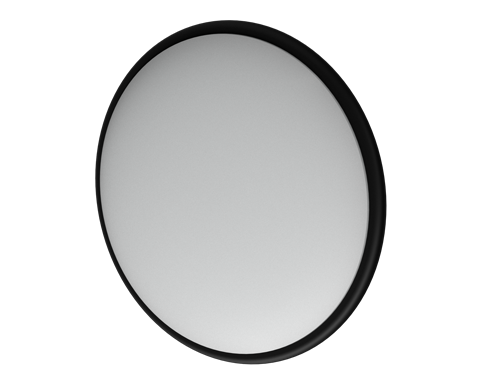

  • xcite x1 bulhead large black

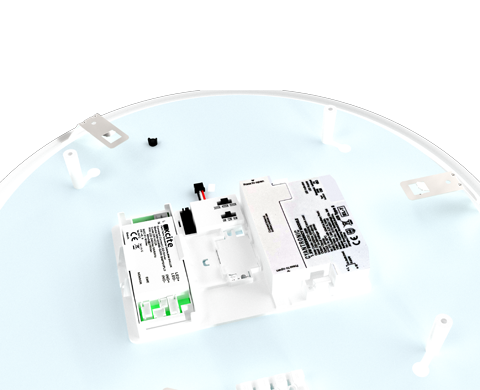

  • xcite x1 bulhead large internal
  • xcite x1 bulhead large
  • xcite x1 bulhead large internal2
  • xcite x1 bulhead large rear
  • xcite x1 bulhead large up
  • xcite x1 bulhead large black
  • xcite x1 bulhead large internal
Where to Buy
  • 12W, 16W and 20W wattage selectable
    Allows the output to be matched to the lighting requirements of the space
  • 3000K, 4000K and 6000K selectable
    Enables the lighting colour to be tailored to suit different environments and user preferences
  • 1800 lm to 3000 lm output range
    Provides suitable light levels for a wide range of communal spaces
  • Large diameter design
    Provides increased coverage and a more prominent appearance within the space
  • Microwave sensor option available
    Supports additional energy savings through automatic occupancy based lighting control
  • Emergency option available
    Maintains illumination during mains power failure to support safe evacuation of the building
  • Aluminium body
    Provides a durable, corrosion resistant housing with excellent longevity
  • Polycarbonate opal diffuser
    Provides enhanced impact resistance, helping the luminaire achieve an IK06 rating for improved durability
Tri-Colour [3000K, 4000K, 6000K]50,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)Maintained emergency 3hr (Option)Microwave sensorWattage SwitchableColour Switchable
X1 BULKHEAD L Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCBHLX1W White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output View
XCBHLX1WM3 White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency View
XCBHLX1WMS White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Microwave sensor View
XCBHLX1WM3MS White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency - Microwave sensor View
XCBHLX1B Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output View
XCBHLX1BM3 Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency View
XCBHLX1BMS Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Microwave sensor View
XCBHLX1BM3MS Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency - Microwave sensor View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCBHLX1W White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output 12W/16W/20W 1800/2500/3000 150 View
XCBHLX1WM3 White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency 12W/16W/20W 1800/2500/3000 150 View
XCBHLX1WMS White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Microwave sensor 12W/16W/20W 1800/2500/3000 150 View
XCBHLX1WM3MS White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency - Microwave sensor 12W/16W/20W 1800/2500/3000 150 View
XCBHLX1B Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output 12W/16W/20W 1800/2500/3000 150 View
XCBHLX1BM3 Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency 12W/16W/20W 1800/2500/3000 150 View
XCBHLX1BMS Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Microwave sensor 12W/16W/20W 1800/2500/3000 150 View
XCBHLX1BM3MS Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency - Microwave sensor 12W/16W/20W 1800/2500/3000 150 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Dia.
(mm)		 Data sheet Buy Now
XCBHLX1W White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output 102 435 View
XCBHLX1WM3 White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency 102 435 View
XCBHLX1WMS White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Microwave sensor 102 435 View
XCBHLX1WM3MS White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency - Microwave sensor 102 435 View
XCBHLX1B Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output 102 435 View
XCBHLX1BM3 Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency 102 435 View
XCBHLX1BMS Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Microwave sensor 102 435 View
XCBHLX1BM3MS Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency - Microwave sensor 102 435 View

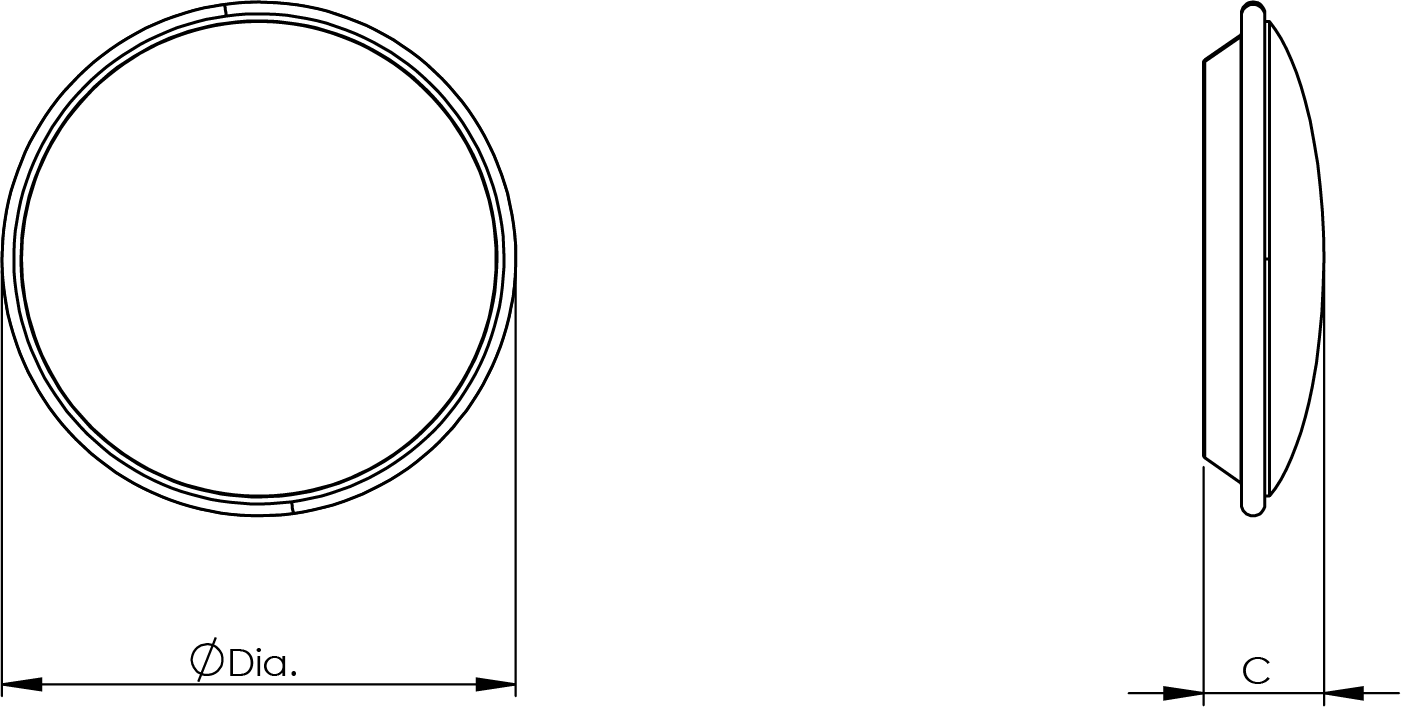

X1 BULKHEAD L Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBHLX1W White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output Energy Class B View Visit
XCBHLX1WM3 White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency Energy Class B View Visit
XCBHLX1WMS White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Microwave sensor Energy Class B View Visit
XCBHLX1WM3MS White - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency - Microwave sensor Energy Class B View Visit
XCBHLX1B Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output Energy Class B View Visit
XCBHLX1BM3 Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency Energy Class B View Visit
XCBHLX1BMS Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Microwave sensor Energy Class B View Visit
XCBHLX1BM3MS Black - 12/16/20W - Opal diffuser - 3000K/4000K/6000K - Fixed output - Emergency - Microwave sensor Energy Class B View Visit

X1 BULKHEAD L Line Drawing

Accessories

X1 BULKHEAD EM MODULE

 chevron-up

X1 BULKHEAD MS MODULE

 chevron-up
