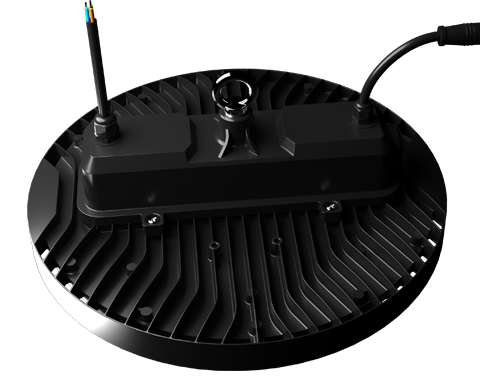

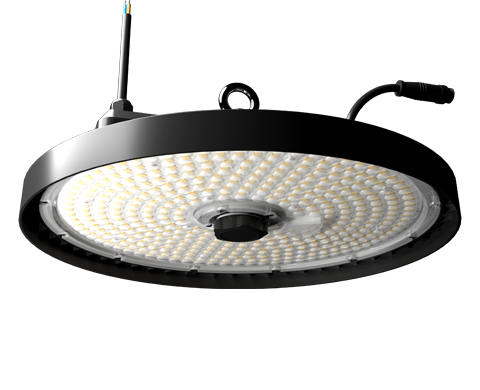

X1 HIGH BAY

Versatile cast aluminium high bay with selectable wattage, switchable CCT, and adjustable beam angles for a wide range of commercial and industrial applications.

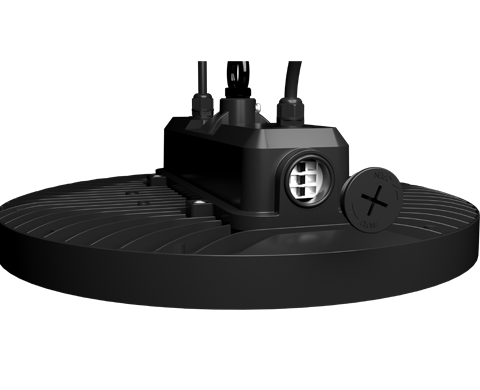

  • 100W/150W/200W Selectable Wattage
    Allows the light output to be tailored to suit different ceiling heights and brightness requirements.
  • 3000K/4000K/5000K Switchable CCT
    Enables warm, neutral, or cool white lighting to be selected to suit the environment and application.
  • 60°/ 90°/110° Adjustable Beam Angles
    Provides optimal light distribution for both open areas and narrower aisle applications.
  • Up To 164 lm/W Efficacy
    Delivers high performance illumination whilst helping to reduce energy consumption and running costs.
  • Cast Aluminium Construction
    Provides a hard wearing and durable solution suitable for demanding commercial and industrial environments.
  • Prismatic Or Aluminium Reflector Options
    Allows the luminaire to be tailored for different lighting distributions and visual comfort requirements.
  • Eye Bolt & Stirrup Bracket Mounting Options
    Offers flexible installation methods to suit a wide range of application requirements.
  • Sensor Options Available
    Helps reduce energy consumption by automatically controlling lighting based on occupancy or daylight levels.
  • Emergency Options Available
    Provides continued illumination during power failure to support occupant safety and safe exit.
50,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK08Marine GradeWattage Switchable
Order Code Description Data sheet Buy Now
XCHBAX1 X1 - 100W/150W/200W - 3000K/4000K/5000K View
Order Code Description W lm lm/W Data sheet Buy Now
XCHBAX1 X1 - 100W/150W/200W - 3000K/4000K/5000K 100 / 150 / 200 15700/22900/29400 164 View
Order Code Description B
(mm)
Dia.
(mm)
Data sheet Buy Now
XCHBAX1 X1 - 100W/150W/200W - 3000K/4000K/5000K 140 330 View
Order Code Description
XCHBAX1 X1 - 100W/150W/200W - 3000K/4000K/5000K
