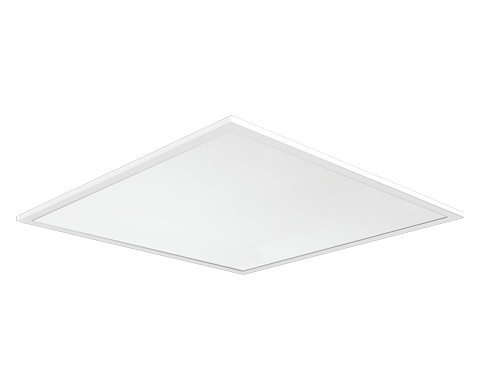

X1 PANEL

Wattage and Colour Selectable Backlit Recessed Panel

Where to Buy
  • xcite x1 panel main
  • xcite x1 panel diffuser

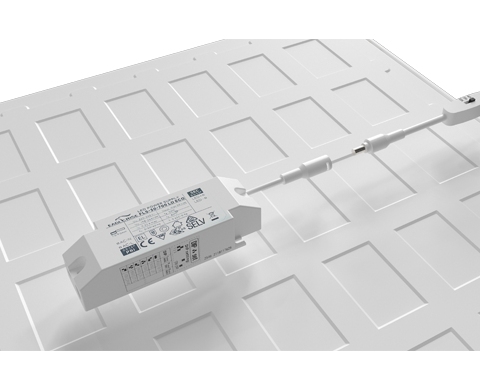

  • xcite x1 panel driver
  • xcite x1 panel cct
  • xcite x1 panel terminal block grey
  • xcite x1 panel terminal block grey full
  • xcite x1 panel main
  • xcite x1 panel diffuser
  • xcite x1 panel driver
  • xcite x1 panel cct
  • xcite x1 panel terminal block grey
  • xcite x1 panel terminal block grey full
Where to Buy

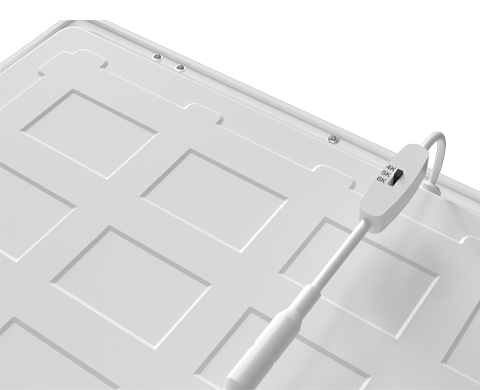

  • CCT selectable via selector switch [4000K/5000K/6000K]
  • Wattage selectable via selector switch [17W/19W/21W/23W/25W/27W]
  • Up to 141 lumens per watt efficacy

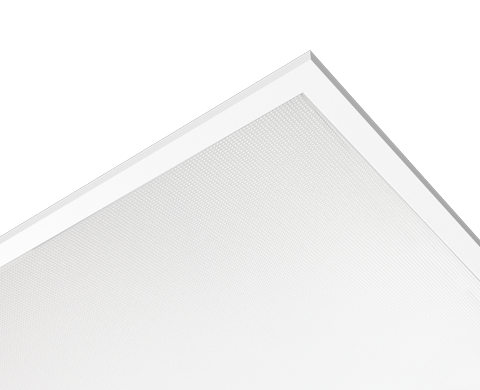

  • Low glare micro prismatic polycarbonate Tp[a] rated diffuser
  • More consistent and uniform appearance than traditional edge-lit panels or downlights

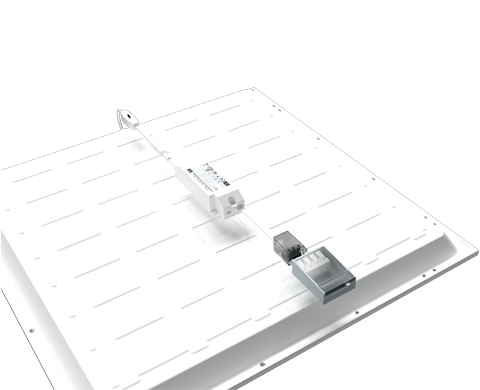

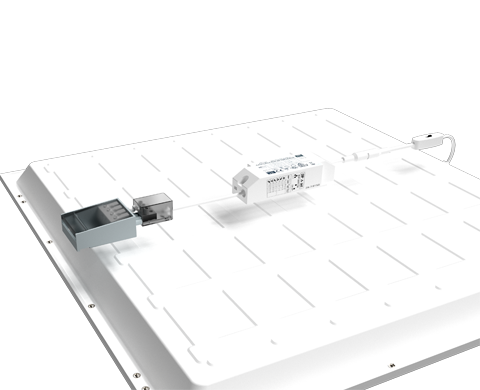

  • Non-dimmable variant wired via Loop in/out 3-pole plug & play connector
  • Extruded aluminium frame
  • Dimmable variant available [controlled via retractive switch]
  • 3 hours emergency maintained with compatible conversion box Emergency Kit
  • Compatible with Panel Frame and Surface Panel Frame
50,000 Hours5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)Dimmable DALI gearDimmableWattage SwitchableColour Switchable
X1 PANEL Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now

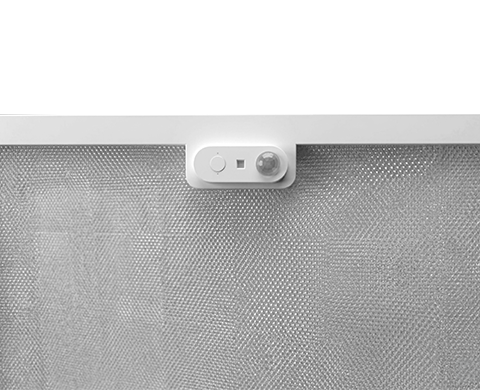

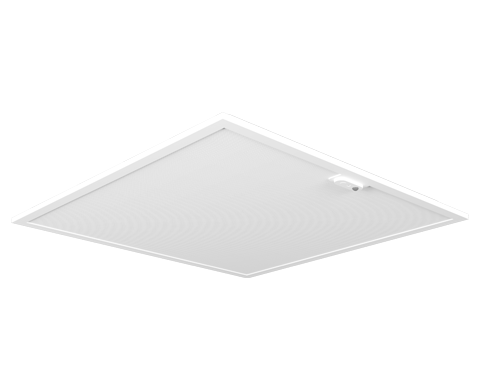

XCLGP66X1DP Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable - PIR/PC View
XCLGP66X1D Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable View
XCLGP66X1 Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Fixed output View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCLGP66X1DP Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable - PIR/PC 17W/19W/21W/23W/25W/27W 2300 to 3500 141 View
XCLGP66X1D Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable 17W/19W/21W/23W/25W/27W 2300 to 3500 141 View
XCLGP66X1 Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Fixed output 17W/19W/21W/23W/25W/27W 2300 to 3500 141 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 B
(mm)		 Data sheet Buy Now
XCLGP66X1DP Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable - PIR/PC 595 595 35 View
XCLGP66X1D Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable 595 595 35 View
XCLGP66X1 Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Fixed output 595 595 35 View
X1 PANEL Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description
XCLGP66X1DP Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable - PIR/PC
XCLGP66X1D Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Dimmable
XCLGP66X1 Wattage Selectable - Micro-prism diffuser - Colour Switchable - White - Fixed output

X1 PANEL Line Drawing
