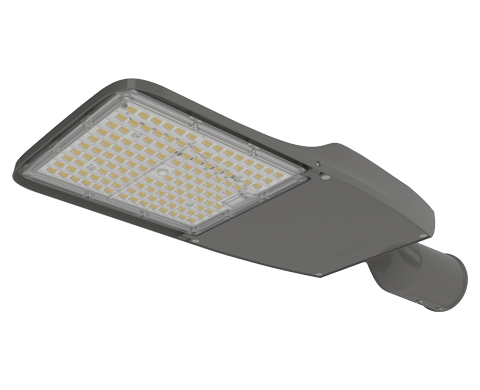

X1 ROAD LANTERN

Colour and Wattage Selectable Road Lantern Designed for Residential or Local Roads, Car Parks and Open Spaces

Where to Buy
  • x1 roadlantern main
  • roadlantern sensor
  • x1 roadlantern rear
  • x1 roadlantern sensor rear
  • x1 roadlantern switch
  • x1 roadlantern small main
  • x1 roadlantern main
  • roadlantern sensor
  • x1 roadlantern rear
  • x1 roadlantern sensor rear
  • x1 roadlantern switch
  • x1 roadlantern small main
  • Available in regular and large sizes for a range of outdoor installations

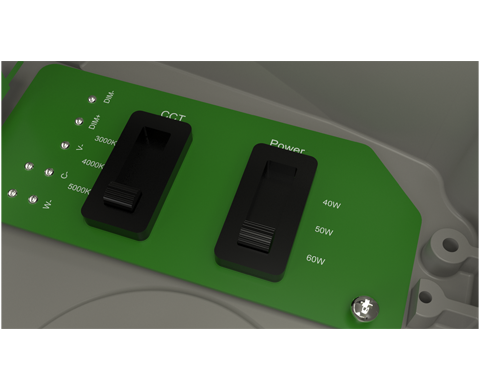

  • Wattage [40W/50W/60W and 110W/120W/135W] adjustable via 3-way selector switch
  • CCT [3000K/4000K/5000K] adjustable via 3-way selector switch
  • Up to 149 lumens per watt efficacy
  • Clear polycarbonate diffuser
  • Aluminium body finished in grey [RAL 9007]
  • Adjustable bracket for side entry or post-top mounting [up to 60mm]
  • Wired via screwless connector inside main body

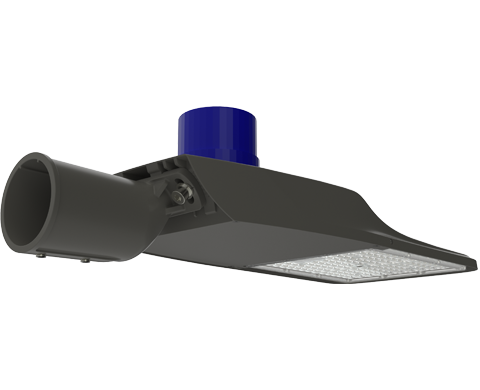

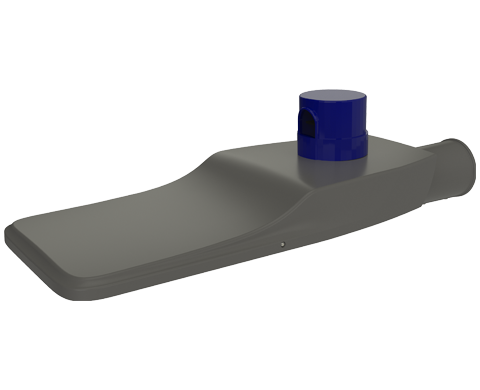

  • Photocell option available
  • Loop in/out push-fit terminal block for quick installation
Tri-Colour [3000K, 4000K, 5000K]5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK08PhotocellWattage SwitchableColour Switchable
X1 ROAD LANTERN Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCRLSX1PC 3000K-5000K + Wattage Switchable + Photocell View
XCRLSX1 3000K-5000K + Wattage Switchable View
XCRLLX1PC 3000K-5000K + Wattage Switchable + Photocell View
XCRLLX1 3000K-5000K + Wattage Switchable View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCRLSX1PC 3000K-5000K + Wattage Switchable + Photocell 40 to 60 6000 - 8700 149 View
XCRLSX1 3000K-5000K + Wattage Switchable 40 to 60 6000 - 8700 149 View
XCRLLX1PC 3000K-5000K + Wattage Switchable + Photocell 110 to 135 15800 - 18300 141 View
XCRLLX1 3000K-5000K + Wattage Switchable 110 to 135 15800 - 18300 141 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCRLSX1PC 3000K-5000K + Wattage Switchable + Photocell 480 160 158 View
XCRLSX1 3000K-5000K + Wattage Switchable 480 160 90 View
XCRLLX1PC 3000K-5000K + Wattage Switchable + Photocell 555 210 158 View
XCRLLX1 3000K-5000K + Wattage Switchable 555 210 90 View
X1 ROAD LANTERN Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCRLSX1PC 3000K-5000K + Wattage Switchable + Photocell Energy Class B Visit
XCRLSX1 3000K-5000K + Wattage Switchable Energy Class B Visit
XCRLLX1PC 3000K-5000K + Wattage Switchable + Photocell Energy Class B Visit
XCRLLX1 3000K-5000K + Wattage Switchable Energy Class B Visit

X1 ROAD LANTERN Line Drawing
