X1 SURFACE LINEAR

Where to Buy

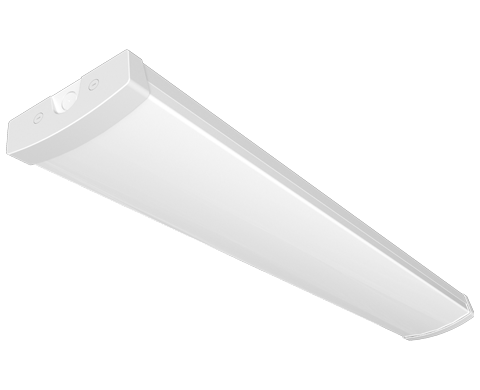

  • xcite x1 surface linear main

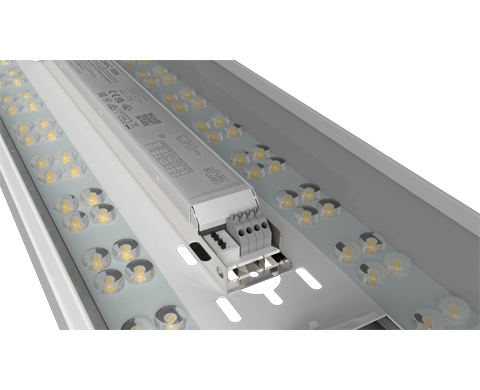

  • xcite x1 surface linear switches

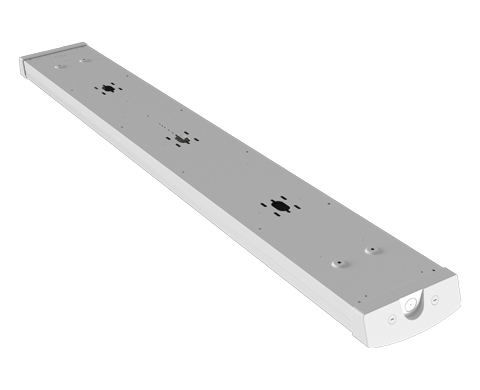

  • xcite x1 surface linear underside

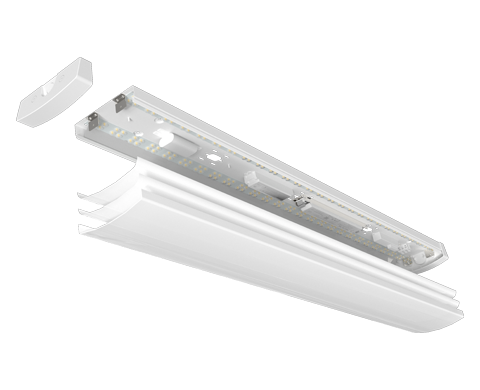

  • xcite x1 surface linear split

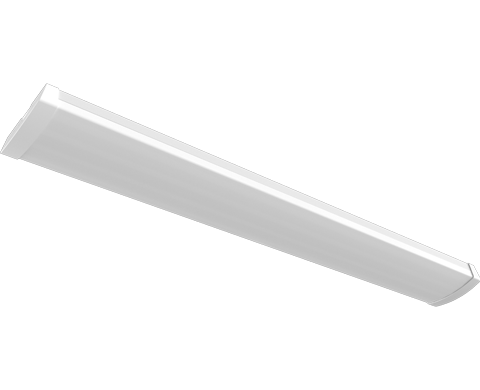

  • xcite x1 surface linear full panel
  • xcite x1 surface linear main
  • xcite x1 surface linear switches
  • xcite x1 surface linear underside
  • xcite x1 surface linear split
  • xcite x1 surface linear full panel
Where to Buy
  • Suitable for schools, corridors and general areas
  • Surface mounted
  • Steel body in white finish
  • Opal polycarbonate diffuser
  • Rear BESA fixings or side cable entry
  • Low glare microprismatic polycarbonate Tp(a) rated diffuser
Tri-Colour [3000K, 4000K, 5000K]5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)Maintained emergency 3hr (Option)Microwave sensorWattage SwitchableColour Switchable
X1 SURFACE LINEAR Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCSL4X1 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable View
XCSL4X1MS 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Microwave sensor View
XCSL4X1M3MS 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency - Microwave sensor View
XCSL4X1M3 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency View
XCSL5X1 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable View
XCSL5X1MS 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Microwave sensor View
XCSL5X1M3 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency View
XCSL5X1M3MS 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency - Microwave sensor View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCSL4X1 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable 23W/29W/35W/40W 2600/3300/3900/4500 113 View
XCSL4X1MS 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Microwave sensor 23W/29W/35W/40W 2600/3300/3900/4500 113 View
XCSL4X1M3MS 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency - Microwave sensor 23W/29W/35W/40W 2600/3300/3900/4500 113 View
XCSL4X1M3 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency 23W/29W/35W/40W 2600/3300/3900/4500 113 View
XCSL5X1 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable 28W/34W/41W/47W 2600/3300/3900/4500 118 View
XCSL5X1MS 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Microwave sensor 28W/34W/41W/47W 2600/3300/3900/4500 118 View
XCSL5X1M3 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency 28W/34W/41W/47W 2600/3300/3900/4500 118 View
XCSL5X1M3MS 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency - Microwave sensor 28W/34W/41W/47W 2600/3300/3900/4500 118 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCSL4X1 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable 1225 155 55 View
XCSL4X1MS 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Microwave sensor 1225 155 55 View
XCSL4X1M3MS 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency - Microwave sensor 1225 155 55 View
XCSL4X1M3 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency 1225 155 55 View
XCSL5X1 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable 1525 155 55 View
XCSL5X1MS 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Microwave sensor 1525 155 55 View
XCSL5X1M3 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency 1525 155 55 View
XCSL5X1M3MS 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency - Microwave sensor 1525 155 55 View
X1 SURFACE LINEAR Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description
XCSL4X1 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable
XCSL4X1MS 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Microwave sensor
XCSL4X1M3MS 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency - Microwave sensor
XCSL4X1M3 1200mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency
XCSL5X1 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable
XCSL5X1MS 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Microwave sensor
XCSL5X1M3 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency
XCSL5X1M3MS 1500mm - Micro-prismatic diffuser - 3000K-5000K + Wattage Switchable - Emergency - Microwave sensor

X1 SURFACE LINEAR Line Drawing
