X1 WP BULKHEAD C

Colour and Wattage Selectable Circular Bulkhead with a Choice Of Opal or Prismatic Diffuser and Black or White Body

Where to Buy

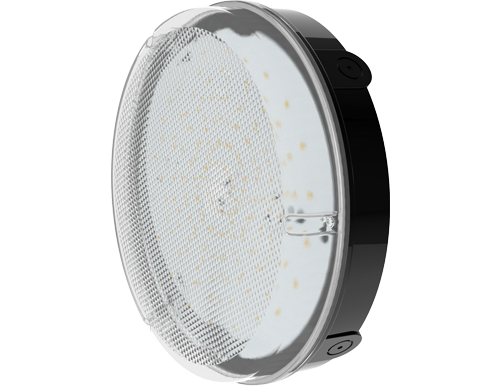

  • wp bulkhead cx1 main prismatic black

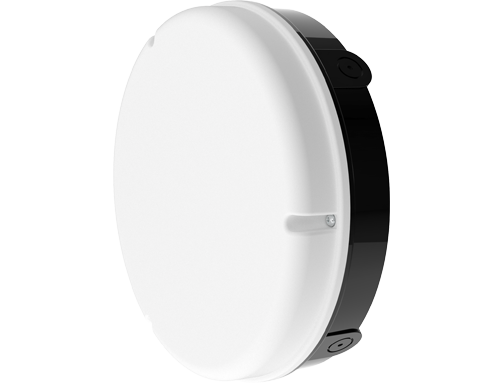

  • wp bulkhead cx1 main opal black

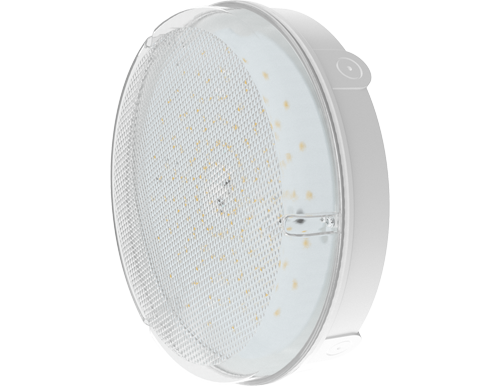

  • wp bulkhead cx1 main prismatic white

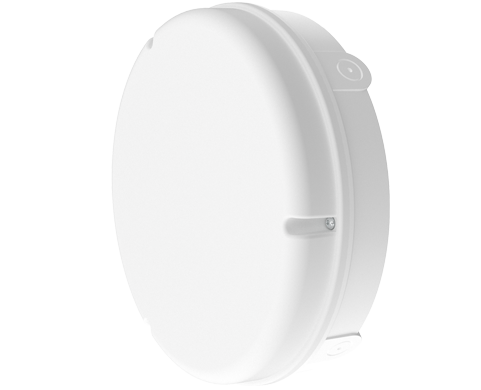

  • wp bulkhead cx1 main opal white

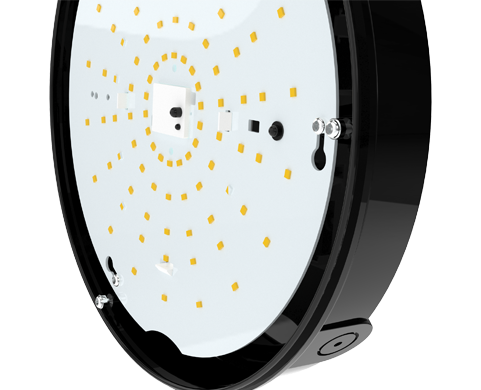

  • wp bulkhead cx sensor

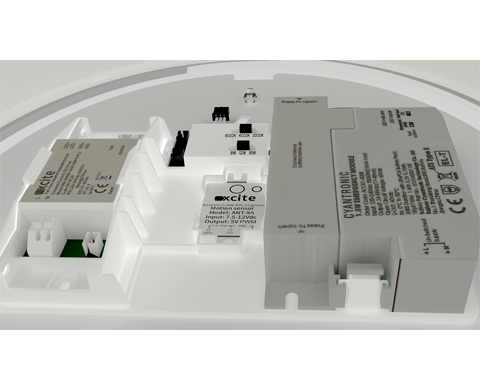

  • wp bulkhead cx1 sensor
  • wp bulkhead cx1 main prismatic black
  • wp bulkhead cx1 main opal black
  • wp bulkhead cx1 main prismatic white
  • wp bulkhead cx1 main opal white
  • wp bulkhead cx sensor
  • wp bulkhead cx1 sensor
  • Suitable for exterior commercial and industrial applications
  • Wattage [8W,10W,12W] adjustable via 3-way selector switch
  • CCT [3000K/4000K/6000K] adjustable via 3-way selector switch
  • Opal or prismatic diffuser available
  • Polycarbonate body finished in black (RAL 9005) or white (RAL 9016)
  • Modular emergency and sensor pack for quick and easy conversion
  • 3-point screw fixing
  • Conduit side entry points for surface mount cable entry
  • Loop-in, loop-out push-fit terminal block for quick tool-free instalation
Tri-Colour [3000K, 4000K, 6000K]5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK08Maintained emergency 3hr (Option)Microwave sensorWattage SwitchableColour Switchable
X1 WP BULKHEAD C Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCBHCBOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor View
XCBHCBOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency View
XCBHCBOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor View
XCBHCBOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - Black View
XCBHCWOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor View
XCBHCWOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency View
XCBHCWOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor View
XCBHCWOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - White View
XCBHCBPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor View
XCBHCBPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency View
XCBHCBPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor View
XCBHCBPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black View
XCBHCWPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor View
XCBHCWPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency View
XCBHCWPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor View
XCBHCWPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCBHCBOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor 8 to 16 1070-1930 128 View
XCBHCBOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency 8 to 16 1070-1930 128 View
XCBHCBOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor 8 to 16 1070-1930 128 View
XCBHCBOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - Black 8 to 16 1070-1930 128 View
XCBHCWOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor 8 to 16 1070-1930 128 View
XCBHCWOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency 8 to 16 1070-1930 128 View
XCBHCWOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor 8 to 16 1070-1930 128 View
XCBHCWOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - White 8 to 16 1070-1930 128 View
XCBHCBPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor 8 to 16 1200-2120 155 View
XCBHCBPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency 8 to 16 1200-2120 155 View
XCBHCBPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor 8 to 16 1200-2120 155 View
XCBHCBPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black 8 to 16 1200-2120 155 View
XCBHCWPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor 8 to 16 1200-2120 155 View
XCBHCWPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency 8 to 16 1200-2120 155 View
XCBHCWPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor 8 to 16 1200-2120 155 View
XCBHCWPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White 8 to 16 1200-2120 155 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Dia.
(mm)		 Data sheet Buy Now
XCBHCBOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor 85 282 View
XCBHCBOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency 85 282 View
XCBHCBOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor 85 282 View
XCBHCBOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - Black 85 282 View
XCBHCWOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor 85 282 View
XCBHCWOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency 85 282 View
XCBHCWOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor 85 282 View
XCBHCWOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - White 85 282 View
XCBHCBPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor 85 282 View
XCBHCBPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency 85 282 View
XCBHCBPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor 85 282 View
XCBHCBPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black 85 282 View
XCBHCWPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor 85 282 View
XCBHCWPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency 85 282 View
XCBHCWPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor 85 282 View
XCBHCWPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White 85 282 View

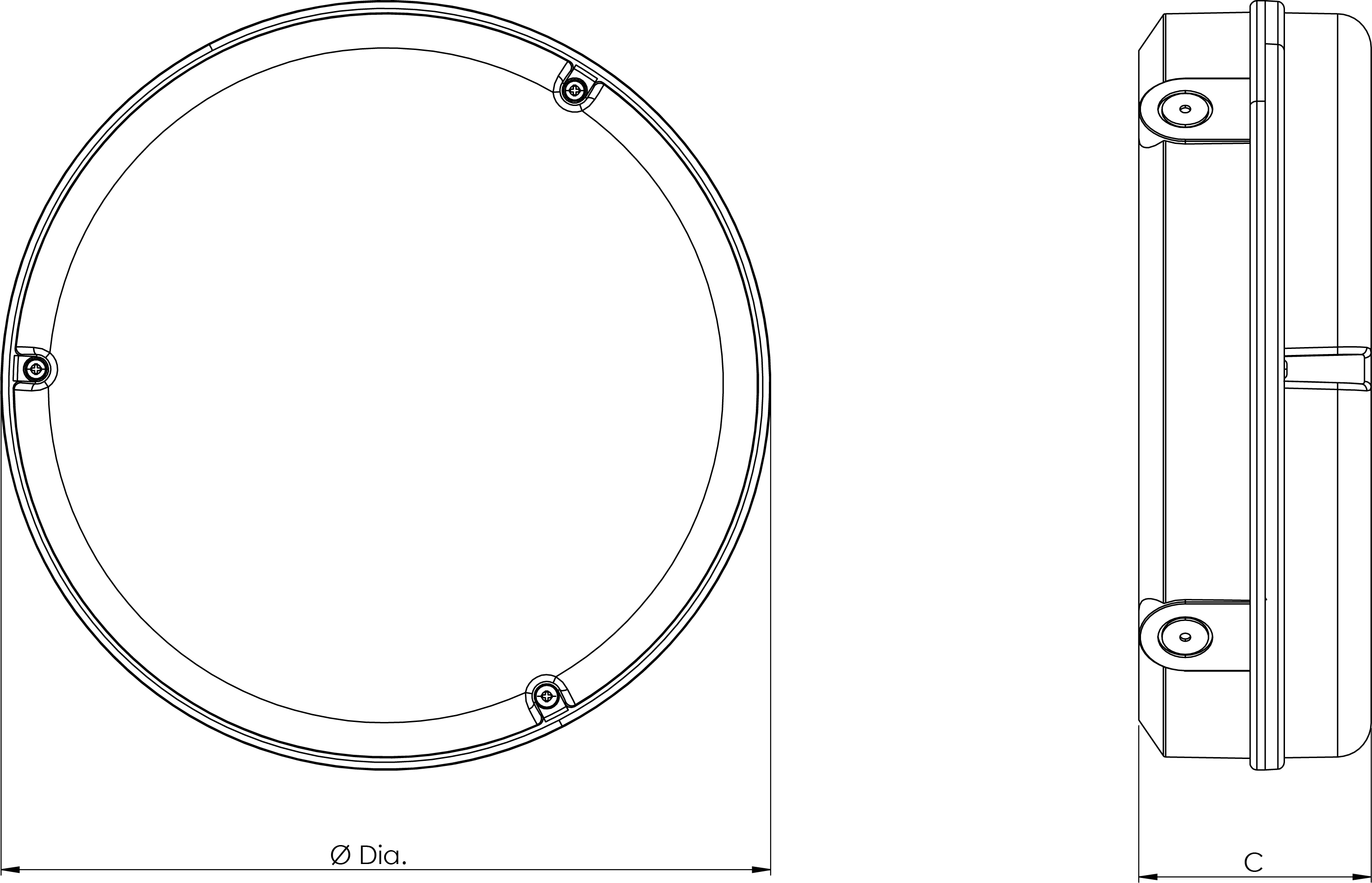

X1 WP BULKHEAD C Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBHCBOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor Energy Class C View Visit
XCBHCBOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency Energy Class C View Visit
XCBHCBOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor Energy Class C View Visit
XCBHCBOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - Black Energy Class C View Visit
XCBHCWOX1M3MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor Energy Class C View Visit
XCBHCWOX1M3 Opal diffuser - 3000K-6000K + Wattage Switchable - White - Emergency Energy Class C View Visit
XCBHCWOX1MS Opal diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor Energy Class C View Visit
XCBHCWOX1 Opal diffuser - 3000K-6000K + Wattage Switchable - White Energy Class C View Visit
XCBHCBPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency - Microwave sensor Energy Class C View Visit
XCBHCBPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Emergency Energy Class C View Visit
XCBHCBPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black - Microwave sensor Energy Class C View Visit
XCBHCBPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - Black Energy Class C View Visit
XCBHCWPX1M3MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency - Microwave sensor Energy Class C View Visit
XCBHCWPX1M3 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Emergency Energy Class C View Visit
XCBHCWPX1MS Prismatic diffuser - 3000K-6000K + Wattage Switchable - White - Microwave sensor Energy Class C View Visit
XCBHCWPX1 Prismatic diffuser - 3000K-6000K + Wattage Switchable - White Energy Class C View Visit

X1 WP BULKHEAD C Line Drawing
