CIRCULAR CABINET LIGHT CC

Circular Under Cabinet Downlight with CCT Selector

Where to Buy

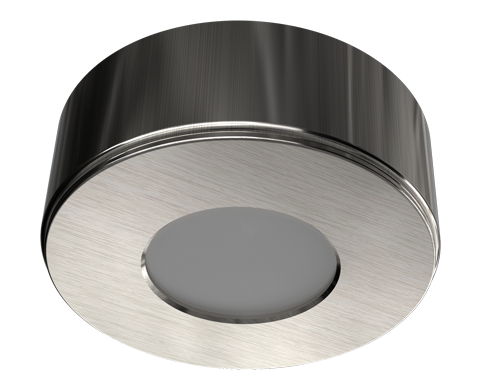

Available in white or satin nickel colour trims
LED circular under cabinet downlight
Suitable for kitchen or wardrobe applications
Can be surface or flush/recessed mounted
Complete with 1.5m of mains, 2 core cable

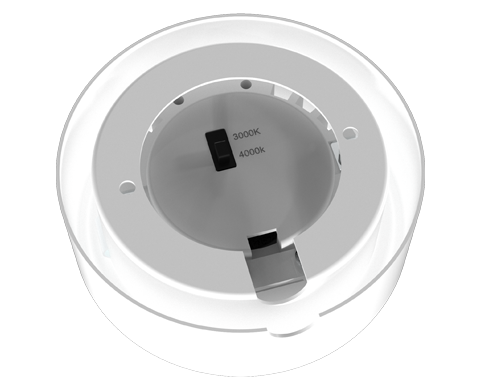

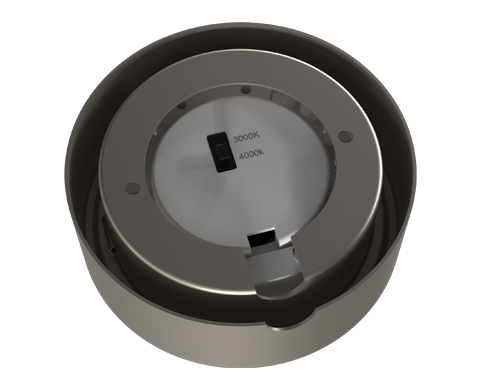

CCT [3000K/4000K] adjustable via 2-way selector switch
Pressed steel body
Frosted polycarbonate diffuser
Integral driver circuitry with mains input

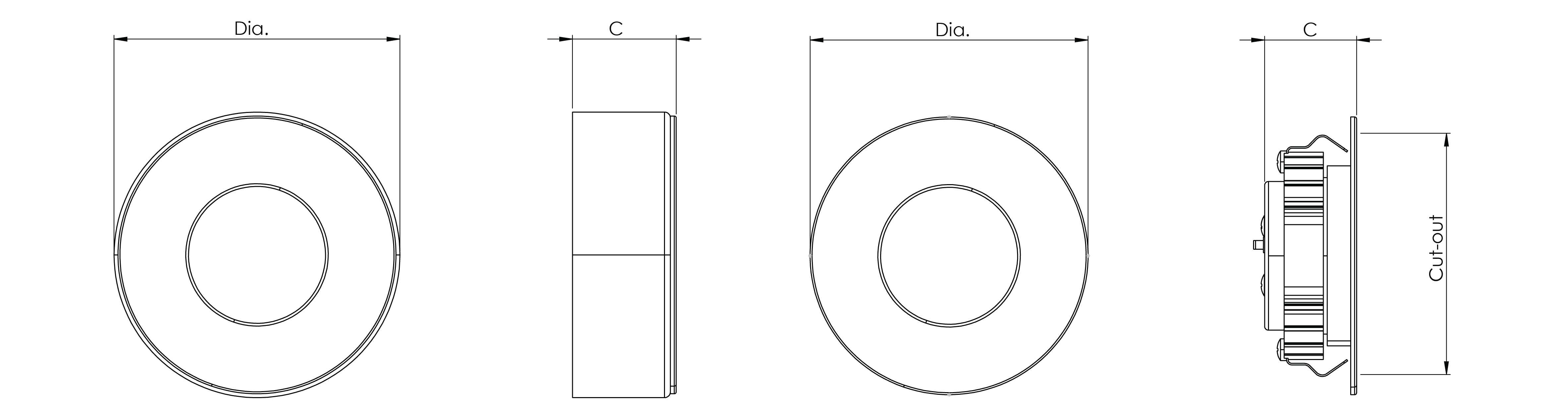

Note: Please note dimensions relate to the 'surface' fitting [WITH TRIM]. The dimensions [WITHOUT TRIM] for recessed install are [Cut-out. 60mm] [Dia. 68mm] [C. 23mm]

Installation Sheet

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Vision

Emergency

Order Code	Description	Data sheet	Buy Now
XCCDL3CTSN	3W - 3000K-4000K - Satin Nickel	View	Buy
XCCDL3CTW	3W - 3000K-4000K - White	View	Buy

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Vision

Emergency

Order Code	Description	W	lm	lm/W	lm/m	Data sheet	Buy Now
XCCDL3CTSN	3W - 3000K-4000K - Satin Nickel	3	240	80	240	View	Buy
XCCDL3CTW	3W - 3000K-4000K - White	3	240	80	240	View	Buy

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Vision

Emergency

Order Code	Description	C (mm)	Fix	Dia. (mm)	Data sheet	Buy Now
XCCDL3CTSN	3W - 3000K-4000K - Satin Nickel	27	48	73	View	Buy
XCCDL3CTW	3W - 3000K-4000K - White	27	48	73	View	Buy

Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Vision

Emergency

Order Code	Description	Energy Class	ERP Instructions	EPREL Site
XCCDL3CTSN	3W - 3000K-4000K - Satin Nickel		View	Visit
XCCDL3CTW	3W - 3000K-4000K - White		View	Visit
