24V COB LED STRIP REEL - 20M

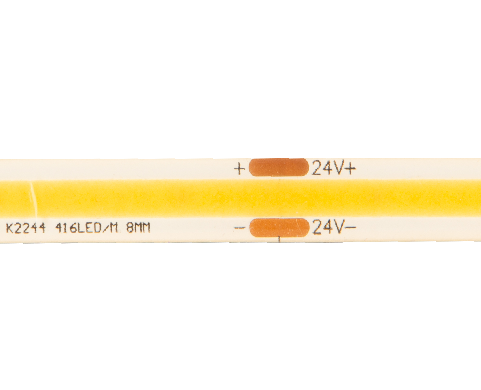

The xcite 24V COB LED Strip Reel 20m delivers a seamless, dot free continuous LED strip light for professional lighting applications. Using high density Chip on Board LED technology, it provides uniform illumination with no visible hotspots, ideal for under cabinet and display lighting.

Where to Buy
  • xcite cob 20m reverse web
  • xcite cob 5m strip web
  • xcite cob led strip web
  • xcite cob 20m web
  • xcite cob 20m reverse web
  • xcite cob 5m strip web
  • xcite cob led strip web
  • xcite cob 20m web
Where to Buy
  • Suitable for under cabinet LED strip lighting in kitchens, bars and restaurants
  • 875 lumens per metre
  • 7W per metre
  • Up to 125 lumens per watt efficacy
  • 416 LED chips per metre for continuous dot free uniform illumination
  • Available in warm white [3000K] or neutral white [4000K]
  • Cuttable reel every 40mm
  • 3M adhesive backing tape

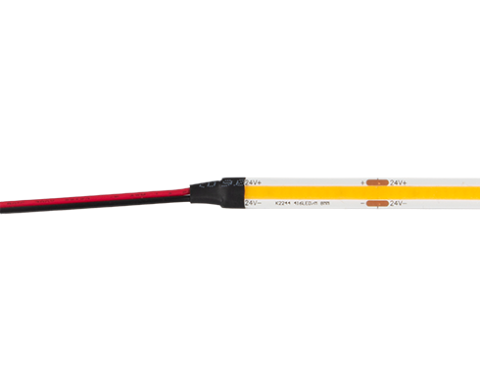

  • 1m cable tails, pre soldered to strip at both ends
3000K - WW4000K - NW3 Years WarrantyElectrical class 3
24V COB LED STRIP REEL - 20M Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Data sheet Buy Now
XCSR20MWWCOB 7 W/m - Silicon - 3000K View
XCSR20MNWCOB 7 W/m - Silicon - 4000K View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description lm/W lm/m W/m Data sheet Buy Now
XCSR20MWWCOB 7 W/m - Silicon - 3000K 125 875 7 View
XCSR20MNWCOB 7 W/m - Silicon - 4000K 125 875 7 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Cut Out
(mm)		 Data sheet Buy Now
XCSR20MWWCOB 7 W/m - Silicon - 3000K 20000 8 2 40 View
XCSR20MNWCOB 7 W/m - Silicon - 4000K 20000 8 2 40 View
24V COB LED STRIP REEL - 20M Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
{"min":3000,"max":4000}
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCSR20MWWCOB 7 W/m - Silicon - 3000K Energy Class E View Visit
XCSR20MNWCOB 7 W/m - Silicon - 4000K Energy Class D View Visit

24V COB LED STRIP REEL - 20M Line Drawing
