DOWNLIGHT BL CC

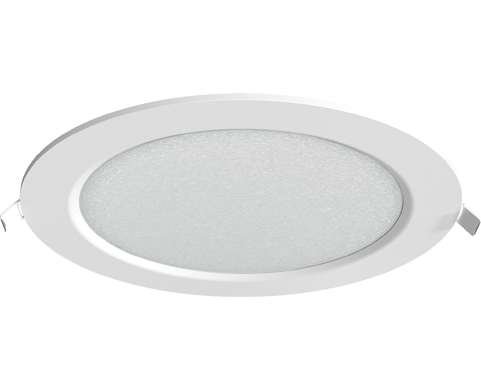

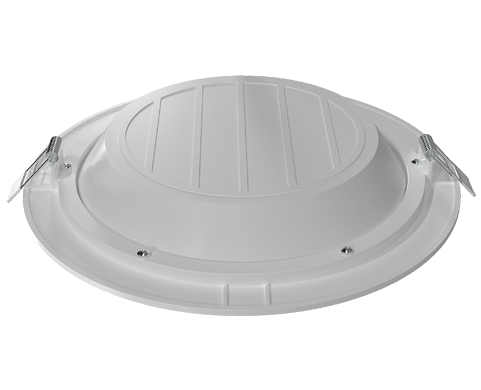

Downlight BL with CCTK Selector
- Suitable for general domestic and commercial use

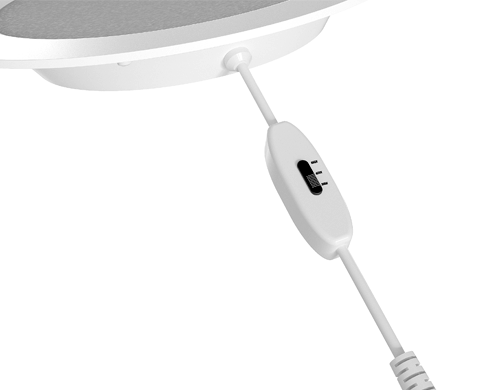

- CCT [3000K/4000K/6000K] adjustable via 3-way selector switch
- Available in 6 sizes
- Available in 6 different outputs
- Phase cut dimming option available
- Frosted polycarbonate diffuser
- 3 hours emergency maintained with compatible conversion box Emergency Kit
- Up to 114 lumens per watt efficacy
![Tri-Colour [3000K, 4000K, 6000K]](/assets/images/icons_xcite/tri346.png "Tri-Colour [3000K, 4000K, 6000K]"){kind=icon}
| Order Code | Description | Data sheet | Light Planner | Buy Now |
|---|---|---|---|---|
| XCBLC5CTD | 5W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | View | Buy | |
| XCBLC5CT | 5W - Downlight BL CC - [3000K/4000K/6000K] | View | View | Buy |
| XCBLC8CTD | 8W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | View | Buy | |
| XCBLC8CT | 8W - Downlight BL CC - [3000K/4000K/6000K] | View | View | Buy |
| XCBLC12CTD | 12W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | View | Buy | |
| XCBLC12CT | 12W - Downlight BL CC - [3000K/4000K/6000K] | View | View | Buy |
| XCBLC15CTD | 15W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | View | Buy | |
| XCBLC15CT | 15W - Downlight BL CC - [3000K/4000K/6000K] | View | View | Buy |
| XCBLC18CTD | 18W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | View | Buy | |
| XCBLC18CT | 18W - Downlight BL CC - [3000K/4000K/6000K] | View | View | Buy |
| XCBLC22CTD | 22W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | View | Buy | |
| XCBLC22CT | 22W - Downlight BL CC - [3000K/4000K/6000K] | View | View | Buy |
| Order Code | Description | W | lm | lm/W | Data sheet | Light Planner | Buy Now |
|---|---|---|---|---|---|---|---|
| XCBLC5CTD | 5W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | 5 | 350 | 70 | View | Buy | |
| XCBLC5CT | 5W - Downlight BL CC - [3000K/4000K/6000K] | 5 | 350 | 70 | View | View | Buy |
| XCBLC8CTD | 8W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | 8 | 700 | 88 | View | Buy | |
| XCBLC8CT | 8W - Downlight BL CC - [3000K/4000K/6000K] | 8 | 700 | 88 | View | View | Buy |
| XCBLC12CTD | 12W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | 12 | 1200 | 100 | View | Buy | |
| XCBLC12CT | 12W - Downlight BL CC - [3000K/4000K/6000K] | 12 | 1200 | 100 | View | View | Buy |
| XCBLC15CTD | 15W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | 15 | 1500 | 100 | View | Buy | |
| XCBLC15CT | 15W - Downlight BL CC - [3000K/4000K/6000K] | 15 | 1500 | 100 | View | View | Buy |
| XCBLC18CTD | 18W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | 18 | 2000 | 111 | View | Buy | |
| XCBLC18CT | 18W - Downlight BL CC - [3000K/4000K/6000K] | 18 | 2000 | 111 | View | View | Buy |
| XCBLC22CTD | 22W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | 22 | 2500 | 114 | View | Buy | |
| XCBLC22CT | 22W - Downlight BL CC - [3000K/4000K/6000K] | 22 | 2500 | 114 | View | View | Buy |

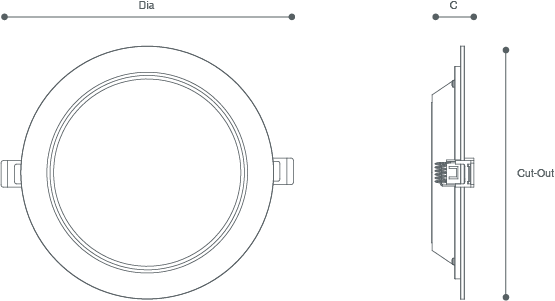

| Order Code | Description | C (mm) |
Cut Out (mm) |
Dia. (mm) |
Data sheet | Light Planner | Buy Now |
|---|---|---|---|---|---|---|---|
| XCBLC5CTD | 5W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | 26 | 70 | 90 | View | Buy | |
| XCBLC5CT | 5W - Downlight BL CC - [3000K/4000K/6000K] | 26 | 70 | 90 | View | View | Buy |
| XCBLC8CTD | 8W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | 26 | 100 | 120 | View | Buy | |
| XCBLC8CT | 8W - Downlight BL CC - [3000K/4000K/6000K] | 26 | 100 | 120 | View | View | Buy |
| XCBLC12CTD | 12W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | 26 | 150 | 170 | View | Buy | |
| XCBLC12CT | 12W - Downlight BL CC - [3000K/4000K/6000K] | 26 | 150 | 170 | View | View | Buy |
| XCBLC15CTD | 15W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | 26 | 180 | 200 | View | Buy | |
| XCBLC15CT | 15W - Downlight BL CC - [3000K/4000K/6000K] | 26 | 180 | 200 | View | View | Buy |
| XCBLC18CTD | 18W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | 26 | 220 | 240 | View | Buy | |
| XCBLC18CT | 18W - Downlight BL CC - [3000K/4000K/6000K] | 26 | 220 | 240 | View | View | Buy |
| XCBLC22CTD | 22W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable | 26 | 280 | 300 | View | Buy | |
| XCBLC22CT | 22W - Downlight BL CC - [3000K/4000K/6000K] | 26 | 280 | 300 | View | View | Buy |
| Order Code | Description | Energy Class | ERP Instructions |
EPREL Site |
|---|---|---|---|---|
| XCBLC5CTD | 5W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable |
|
View | Visit |
| XCBLC5CT | 5W - Downlight BL CC - [3000K/4000K/6000K] |
|
View | Visit |
| XCBLC8CTD | 8W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable |
|
View | Visit |
| XCBLC8CT | 8W - Downlight BL CC - [3000K/4000K/6000K] |
|
View | Visit |
| XCBLC12CTD | 12W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable |
|
View | Visit |
| XCBLC12CT | 12W - Downlight BL CC - [3000K/4000K/6000K] |
|
View | Visit |
| XCBLC15CTD | 15W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable |
|
View | Visit |
| XCBLC15CT | 15W - Downlight BL CC - [3000K/4000K/6000K] |
|
View | Visit |
| XCBLC18CTD | 18W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable |
|
View | Visit |
| XCBLC18CT | 18W - Downlight BL CC - [3000K/4000K/6000K] |
|
View | Visit |
| XCBLC22CTD | 22W - Downlight BL CC - [3000K/4000K/6000K] - Dimmable |
|
View | Visit |
| XCBLC22CT | 22W - Downlight BL CC - [3000K/4000K/6000K] |
|
View | Visit |
