SCOOP

Adjustable Downlight

Where to Buy

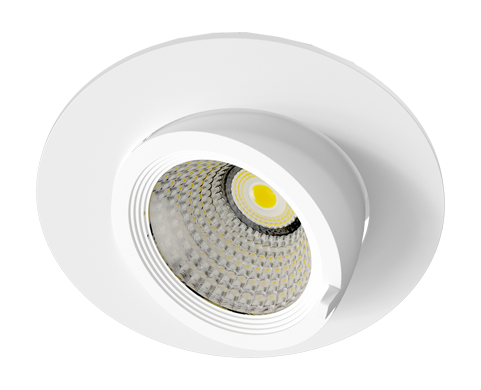

  • xcite scoop spotlight

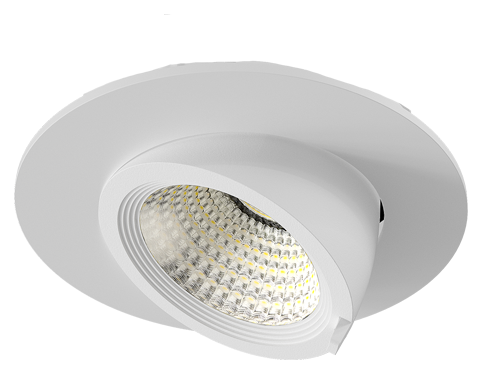

  • xcite scoop spotlight tilted

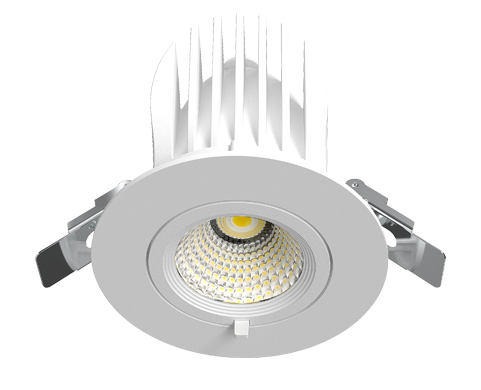

  • xcite scoop spotlight mounting

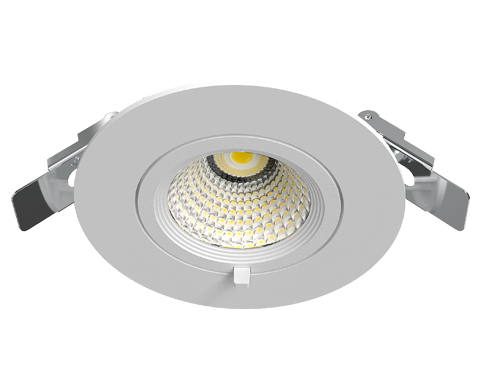

  • xcite scoop spotlight mounted
  • xcite scoop spotlight
  • xcite scoop spotlight tilted
  • xcite scoop spotlight mounting
  • xcite scoop spotlight mounted
  • Supplied with neutral white [4000K]
  • Suitable for retail and display areas
  • Available in 2 different outputs
  • Fully adjustable up to 350° rotation and 45° tilt
  • Supplied with polished aluminium reflector - 35º beam angle
  • Die-cast aluminium body finished in white
  • Remote driver
  • Supplied as standard with neutral white [4000K] LED
  • Up to 100 lumens per watt efficacy
4000K - NW30,000 Hours3 Years WarrantyIK02
SCOOP Product Flyer Icon

Product Flyer
SCOOP Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCSC15NW 15W - Scoop Downlight - 4000K View Buy
XCSC40NW 40W - Scoop Downlight - 4000K View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCSC15NW 15W - Scoop Downlight - 4000K 15 1500 100 View Buy
XCSC40NW 40W - Scoop Downlight - 4000K 40 4000 100 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description C
(mm)		 Cut Out
(mm)		 Dia.
(mm)		 Data sheet Buy Now
XCSC15NW 15W - Scoop Downlight - 4000K 94 105 113 View Buy
XCSC40NW 40W - Scoop Downlight - 4000K 145 155 163 View Buy

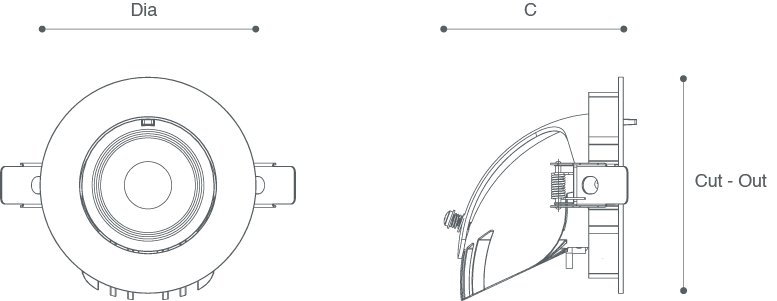

SCOOP Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCSC15NW 15W - Scoop Downlight - 4000K Energy Class D View Visit
XCSC40NW 40W - Scoop Downlight - 4000K Energy Class E View Visit

SCOOP Line Drawing
