X1 FRD
Fire Rated, Recessed Colour and Wattage Selectable Downlight, with Interchangeable Magnetic Bezels
- Suitable for domestic applications
- Ideal for retrofit of existing halogen downlight fixtures
- CCT [2700K,3000K,4000K,6000K] adjustable via 4-way selector switch
- Wattage [4W,6W] adjustable via 2-way selector switch

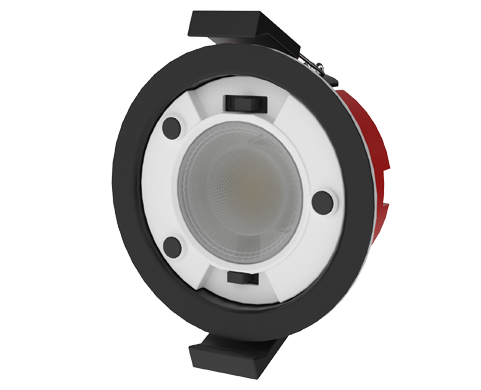

- Easy accessible CCT and Wattage switches beneath magnetic fix bezel for quick and simple adjustment
- 30, 60 & 90 minute fire rating with solid timber joists
- 30 minute fire rating with Staircraft I-Joist and METAL WEB Joist [Compatibility Matrix]

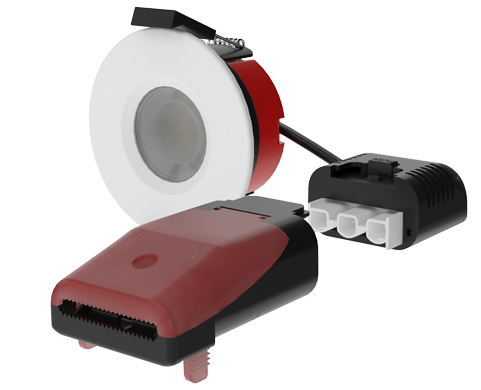

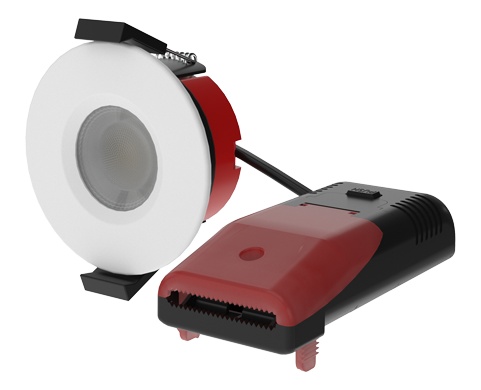

- 2-part loop in/out push-fit terminal block for quick installation
- Screwless colour-coded terminals for quick & easy installation

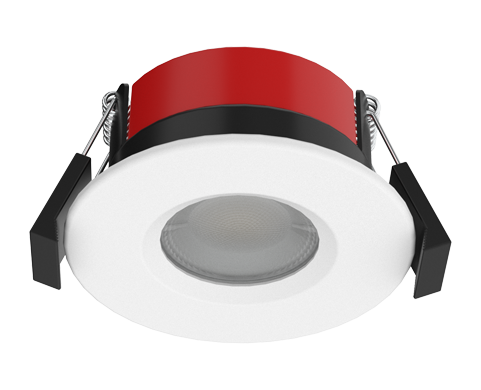

- Supplied with white magnetic bezel as standard

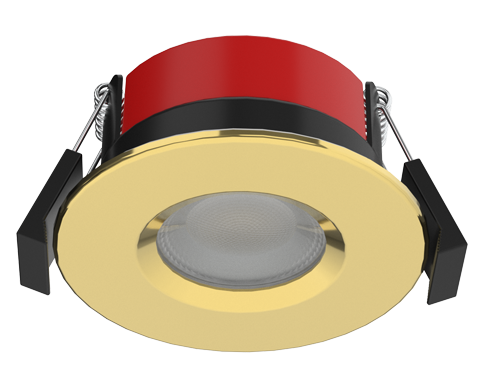

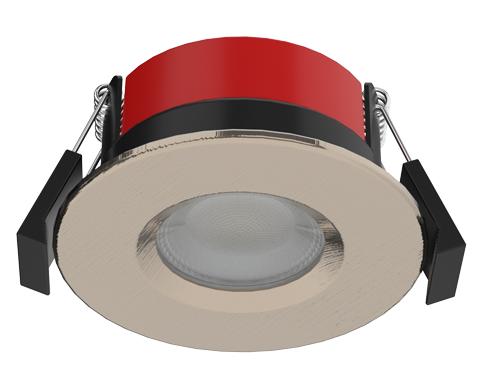

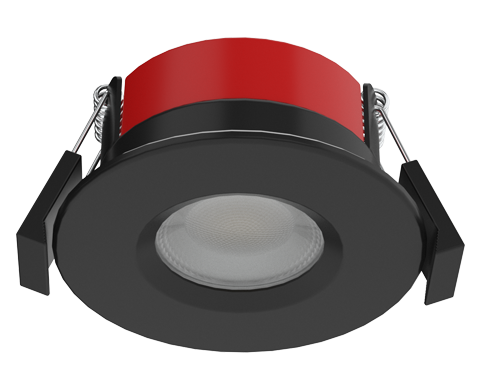

- Interchangeable X1 Bezels [Sold Separately]
![Fire Rated [30,60,90 minute fire rating with solid timber joists]](/assets/images/icons_xcite/306090minutes.png "Fire Rated [30,60,90 minute fire rating with solid timber joists]"){kind=icon}
![Fire Rated I-Joist [30 minute fire rating]](/assets/images/icons_xcite/30minsstair.png "Fire Rated I-Joist [30 minute fire rating]"){kind=icon}
![Fire Rated Metal Web I-Joist [30 minute fire rating]](/assets/images/icons_xcite/30minsmetalweb.png "Fire Rated Metal Web I-Joist [30 minute fire rating]"){kind=icon}
No
No
| Order Code | Description | Data sheet | Buy Now |
|---|---|---|---|
| XCFRAX1W | 2700K-6000K + Wattage Switchable - White | View |
No
No
| Order Code | Description | W | lm | lm/W | Data sheet | Buy Now |
|---|---|---|---|---|---|---|
| XCFRAX1W | 2700K-6000K + Wattage Switchable - White | 4 to 6 | 340 to 610 | 93 | View |
No
No

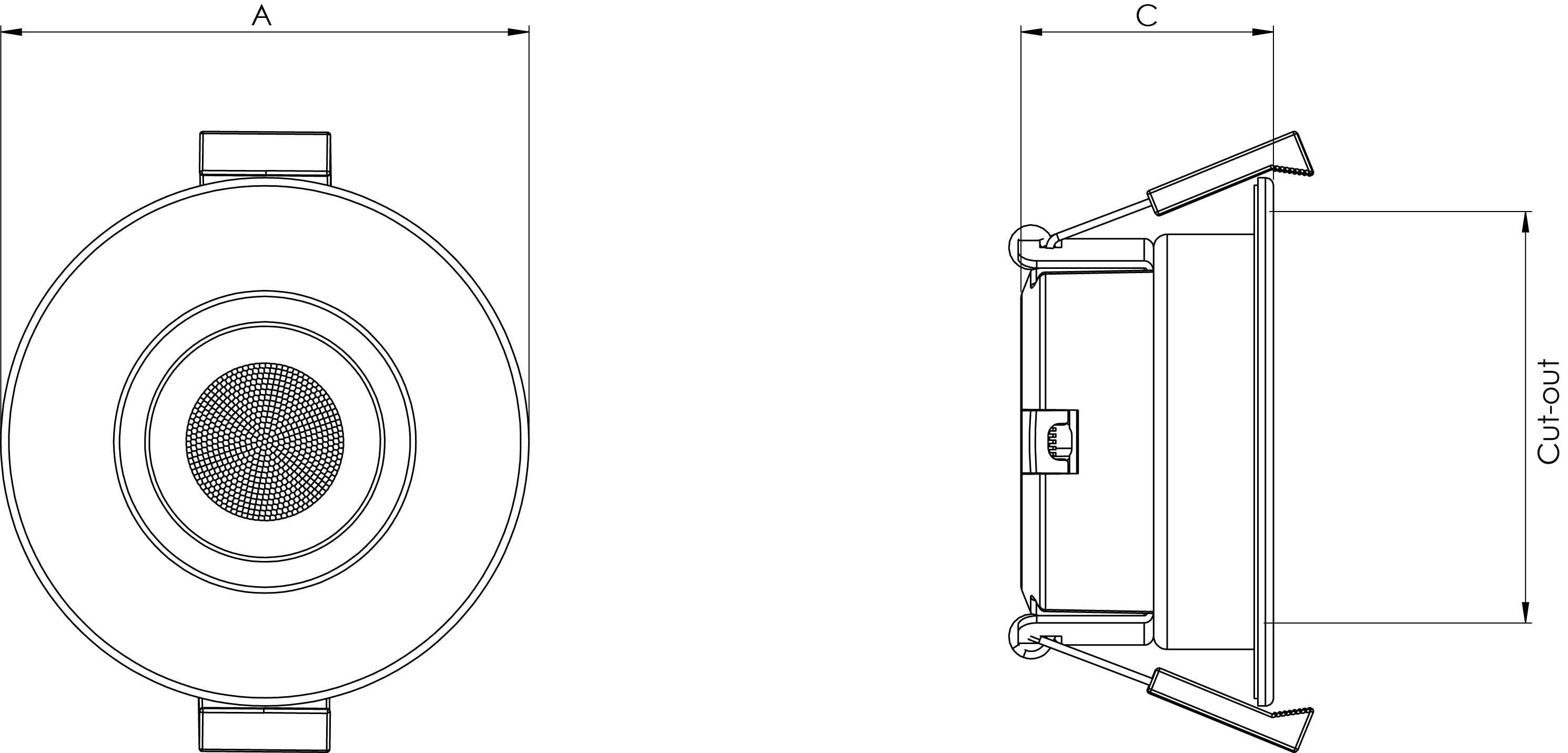

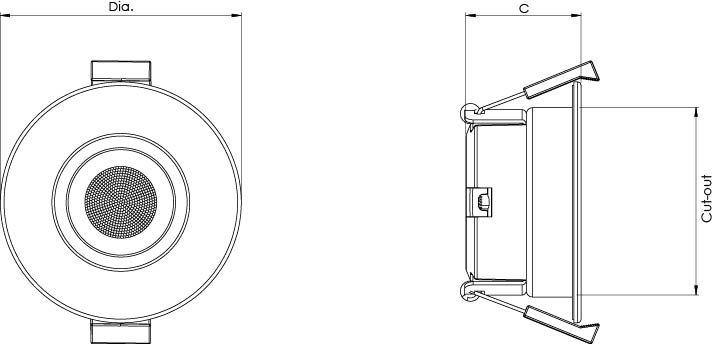

| Order Code | Description | B (mm) |
Cut Out (mm) |
Dia. (mm) |
Data sheet | Buy Now |
|---|---|---|---|---|---|---|
| XCFRAX1W | 2700K-6000K + Wattage Switchable - White | 45 | 70 | 85 | View |
No
No
| Order Code | Description |
|---|---|
| XCFRAX1W | 2700K-6000K + Wattage Switchable - White |
