X1 FRD TILT
Recessed Colour and Wattage Selectable Fire Rated Tilt Downlight, with Interchangeable Magnetic Bezels
- Suitable for domestic applications
- Ideal for retrofit of existing halogen downlight fixtures
- 30, 60 & 90 minute fire rating with solid timber joists
- 30 minute fire rating with Staircraft I-Joist and METAL WEB Joist [Compatibility Matrix]
- Thermally-insulating material coverable
- CCT [2700K,3000K,4000K,6000K] adjustable via 4-way selector switch
- Wattage [4W,6W] adjustable via 2-way selector switch

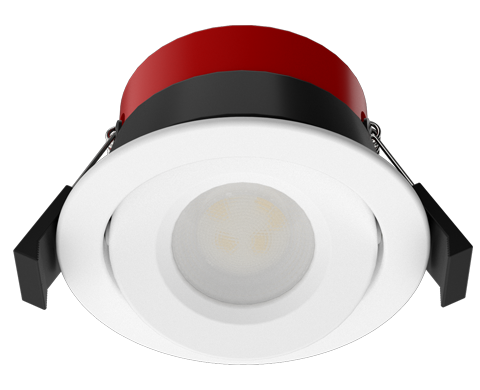

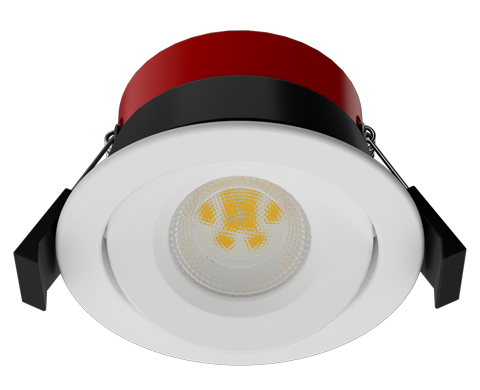

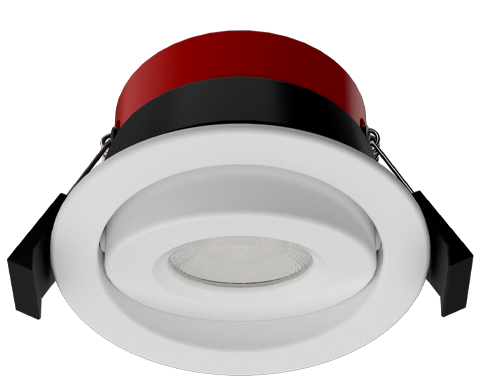

- Up to 20° tilt adjustment for flexible aiming

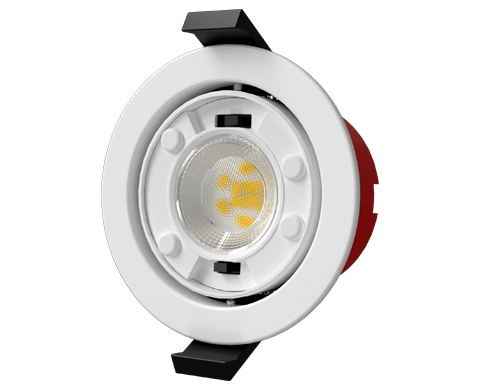

- Easy accessible CCT and Wattage switches beneath magnetic fix bezel for quick and simple adjustment
- Dimmable as standard
- 2-part loop in/out push-fit terminal block for quick installation
- Screwless terminals for quick & easy installation
Note: Magnetic bezels sold separately
![Fire Rated [30,60,90 minute fire rating with solid timber joists]](/assets/images/icons_xcite/306090minutes.png "Fire Rated [30,60,90 minute fire rating with solid timber joists]"){kind=icon}
![Fire Rated I-Joist [30 minute fire rating]](/assets/images/icons_xcite/30minsstair.png "Fire Rated I-Joist [30 minute fire rating]"){kind=icon}
![Fire Rated Metal Web I-Joist [30 minute fire rating]](/assets/images/icons_xcite/30minsmetalweb.png "Fire Rated Metal Web I-Joist [30 minute fire rating]"){kind=icon}
No
No
| Order Code | Description | Data sheet | Buy Now |
|---|---|---|---|
| XCFRATX1 | X1 FRD TILT - 2700K-6000K + Wattage Switchable | View |
No
No
| Order Code | Description | W | lm | lm/W | Data sheet | Buy Now |
|---|---|---|---|---|---|---|
| XCFRATX1 | X1 FRD TILT - 2700K-6000K + Wattage Switchable | 4W/6W | 340 to 610 | 93 | View |
No
No

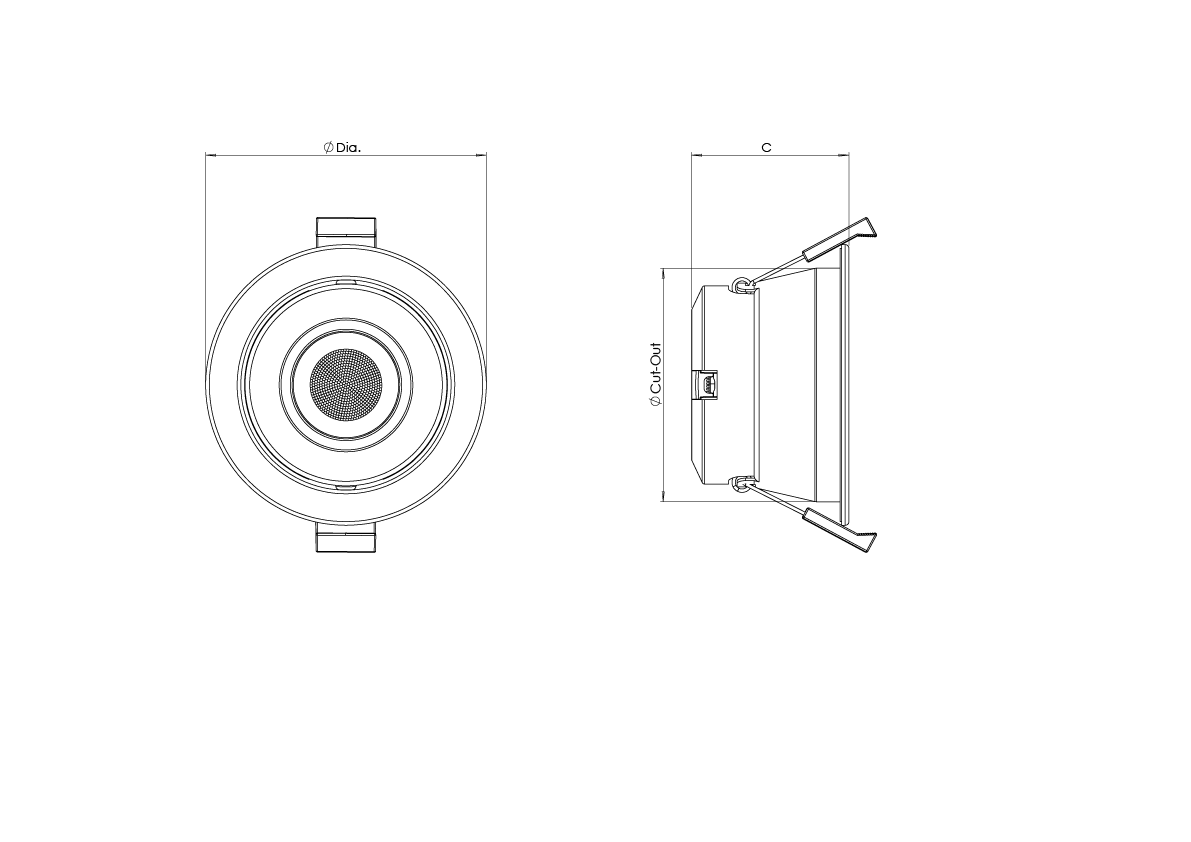

| Order Code | Description | C (mm) |
Cut Out (mm) |
Dia. (mm) |
Data sheet | Buy Now |
|---|---|---|---|---|---|---|
| XCFRATX1 | X1 FRD TILT - 2700K-6000K + Wattage Switchable | 56 | 84 | 99 | View |
No
No
| Order Code | Description |
|---|---|
| XCFRATX1 | X1 FRD TILT - 2700K-6000K + Wattage Switchable |
