X1 MIDI WALL

The X1 MIDI WALL is a robust and versatile wall mounted luminaire, combining switchable CCT, selectable wattage and high efficacy performance in a durable IP65 and IK10 rated design. Constructed from die cast aluminium and delivering up to 146 lm/W, it provides a reliable, energy efficient lighting solution, with emergency and photocell options available for enhanced functionality.

Where to Buy

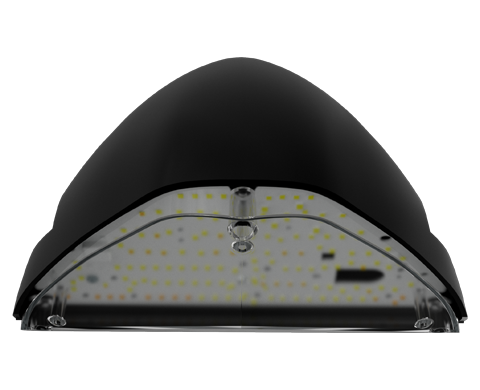

  • xcite midi wall main

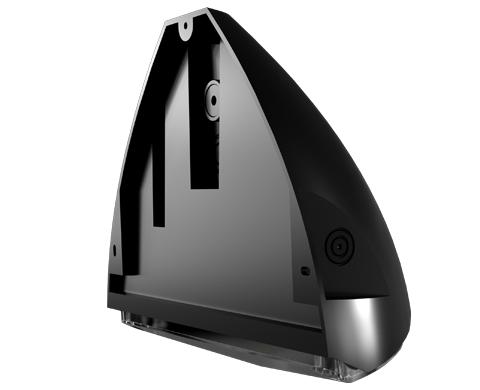

  • xcite midi wall rear

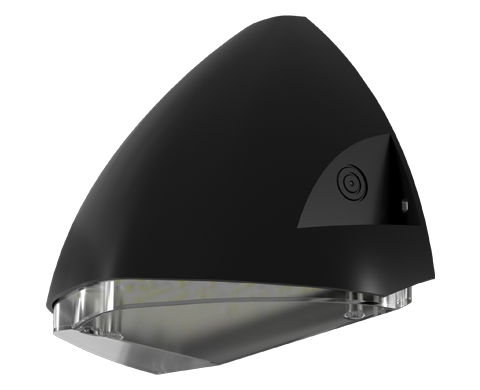

  • xcite midi wall side
  • xcite midi wall main
  • xcite midi wall rear
  • xcite midi wall side
Where to Buy
  • Switchable CCT
    Enables the required colour temperature to be selected to suit the desired lighting environment.
  • Selectable Wattage
    Enables the required light output to be selected to suit the application
  • Up to 146 lm/W
    Delivers high performance illumination while helping to reduce energy consumption.
  • IP65
    Protects against dust and water ingress for reliable performance in demanding environments
  • IK10
    Provides excellent resistance to impact, helping to maintain long term performance
  • Cast Aluminium Construction
    Provides a robust, durable housing for long term reliability
  • Side & Rear Cable Entry
    Provides flexible cable entry options to suit a wide range of installation requirements.
  • Emergency Option
    Maintains illumination during a mains power failure to support safe evacuation
  • Photocell Option
    Provides automatic lighting control, helping to improve energy efficiency and reduce operating costs.
5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)IP65IK10Maintained emergency 3hr (Option)Photocell
X1 MIDI WALL Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCMWX1 3000K-6000K + Wattage Selectable View
XCMWX1M3 3000K-6000K + Wattage Selectable View
XCMWX1PC 3000K-6000K + Wattage Selectable View
XCMWX1M3PC 3000K-6000K + Wattage Selectable View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCMWX1 3000K-6000K + Wattage Selectable 7 / 9 / 11 / 13 1050/1327/1564/1813 146 View
XCMWX1M3 3000K-6000K + Wattage Selectable 7 / 9 / 11 / 13 1050/1327/1564/1813 146 View
XCMWX1PC 3000K-6000K + Wattage Selectable 7 / 9 / 11 / 13 1050/1327/1564/1813 146 View
XCMWX1M3PC 3000K-6000K + Wattage Selectable 7 / 9 / 11 / 13 1050/1327/1564/1813 146 View
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 B
(mm)		 Data sheet Buy Now
XCMWX1 3000K-6000K + Wattage Selectable 137 260 214 View
XCMWX1M3 3000K-6000K + Wattage Selectable 137 260 214 View
XCMWX1PC 3000K-6000K + Wattage Selectable 137 260 214 View
XCMWX1M3PC 3000K-6000K + Wattage Selectable 137 260 214 View

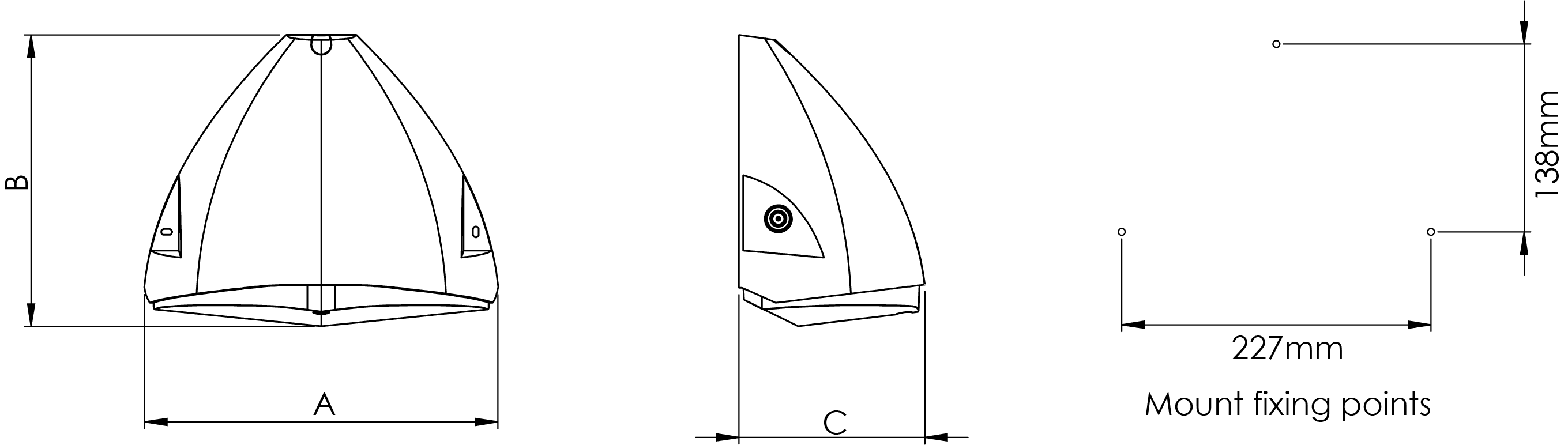

X1 MIDI WALL Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description
XCMWX1 3000K-6000K + Wattage Selectable
XCMWX1M3 3000K-6000K + Wattage Selectable
XCMWX1PC 3000K-6000K + Wattage Selectable
XCMWX1M3PC 3000K-6000K + Wattage Selectable

X1 MIDI WALL Line Drawing
