X1 BATTEN

Slimline Colour and Wattage Selectable Batten for Domestic and Commercial Applications

Where to Buy
  • xcite batten main
  • xcite batten exterior close nosymbol

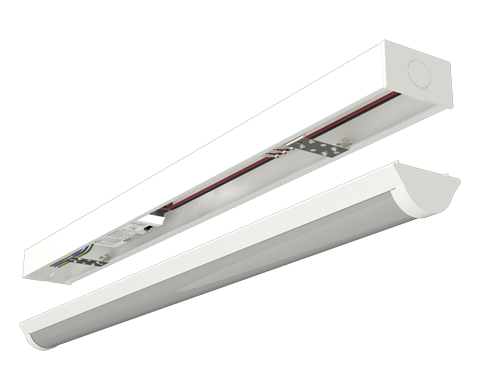

  • xcite batten x1 split
  • xcite batten terminal block

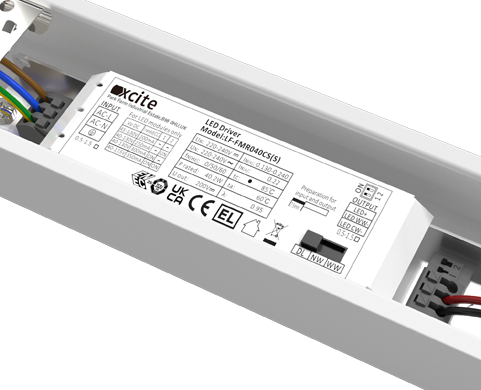

  • xcite batten interior wide

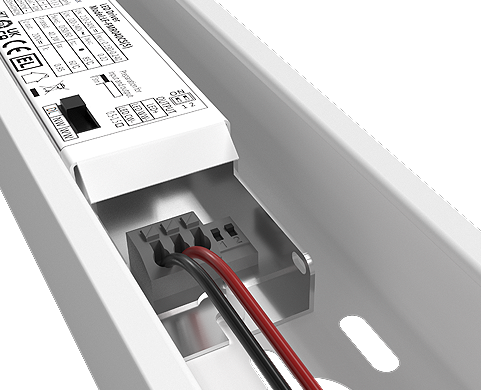

  • xcite batten interior close

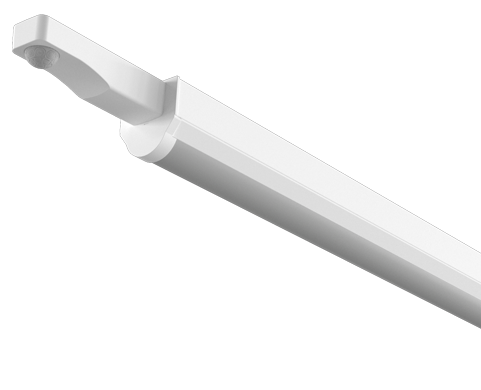

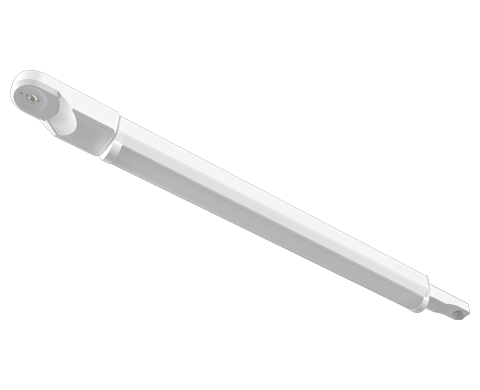

  • xcite batten pir
  • xcite batten main
  • xcite batten exterior close nosymbol
  • xcite batten x1 split
  • xcite batten terminal block
  • xcite batten interior wide
  • xcite batten interior close
  • xcite batten pir
  • Ideal for replacement of linear fluorescent fixtures
  • Suitable for general domestic and commercial use
  • CCT [3000K/4000K/6000K] adjustable via 3-way selector switch
  • Available in 4 lengths [2ft, 4ft, 5ft, and 6ft]
  • Wattage [11 to 60] adjustable via 2-way dip switch
  • Slimline steel body finished in white (RAL 9016)
  • High quality opal diffuser to reduce glare

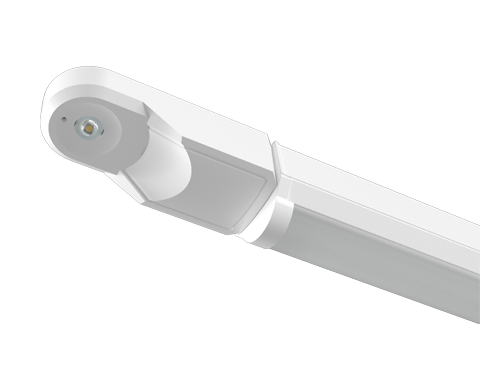

  • Integral emergency option available
  • Loop in/out mains connector
  • Conduit and BESA fixing points for end or rear cable entry
  • Centrally-mounted loop-in, loop-out push fit terminal block
Tri-Colour [3000K, 4000K, 6000K]5 Years Warranty1 Year On-Site Warranty (T&C`s Apply)Maintained emergency 3hr (Option)PIR SensorWattage SwitchableColour Switchable
X1 BATTEN Installation Guide Icon

Installation Sheet
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Data sheet Buy Now
XCBT2X1M3P 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR View
XCBT2X1S3 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency View Buy
XCBT2X1 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable View Buy
XCBT2X1P 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR View
XCBT4X1M3P 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR View
XCBT4X1M3 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency View Buy
XCBT4X1P 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR View
XCBT4X1 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable View Buy
XCBT5X1M3P 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR View
XCBT5X1M3 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency View Buy
XCBT5X1P 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR View
XCBT5X1 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable View Buy
XCBT6X1M3P 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR View
XCBT6X1M3 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency View Buy
XCBT6X1P 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR View
XCBT6X1 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description W lm lm/W Data sheet Buy Now
XCBT2X1M3P 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR 11 to 18 1300 to 2300 132 View
XCBT2X1S3 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 11 to 18 1300 to 2300 132 View Buy
XCBT2X1 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable 11 to 18 1300 to 2300 132 View Buy
XCBT2X1P 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR 11 to 18 1300 to 2300 132 View
XCBT4X1M3P 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR 20 to 36 2750 to 4900 146 View
XCBT4X1M3 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 20 to 36 2750 to 4900 146 View Buy
XCBT4X1P 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR 20 to 36 2750 to 4900 146 View
XCBT4X1 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable 20 to 36 2750 to 4900 146 View Buy
XCBT5X1M3P 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR 31 to 57 4200 to 7600 146 View
XCBT5X1M3 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 31 to 57 4200 to 7600 146 View Buy
XCBT5X1P 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR 31 to 57 4200 to 7600 146 View
XCBT5X1 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable 31 to 57 4200 to 7600 146 View Buy
XCBT6X1M3P 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR 34 to 60 4700 to 8600 150 View
XCBT6X1M3 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 34 to 60 4700 to 8600 150 View Buy
XCBT6X1P 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR 34 to 60 4700 to 8600 150 View
XCBT6X1 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable 34 to 60 4700 to 8600 150 View Buy
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description A
(mm)		 B
(mm)		 C
(mm)		 Data sheet Buy Now
XCBT2X1M3P 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR 841 55 58 View
XCBT2X1S3 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 720 55 58 View Buy
XCBT2X1 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable 600 55 58 View Buy
XCBT2X1P 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR 721 55 58 View
XCBT4X1M3P 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR 1321 55 58 View
XCBT4X1M3 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 1200 55 58 View Buy
XCBT4X1P 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR 1321 55 58 View
XCBT4X1 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable 1200 55 58 View Buy
XCBT5X1M3P 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR 1621 55 58 View
XCBT5X1M3 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 1500 55 58 View Buy
XCBT5X1P 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR 1621 55 58 View
XCBT5X1 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable 1500 55 58 View Buy
XCBT6X1M3P 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR 1921 55 58 View
XCBT6X1M3 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency 1800 55 58 View Buy
XCBT6X1P 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR 1921 55 58 View
XCBT6X1 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable 1800 55 58 View Buy

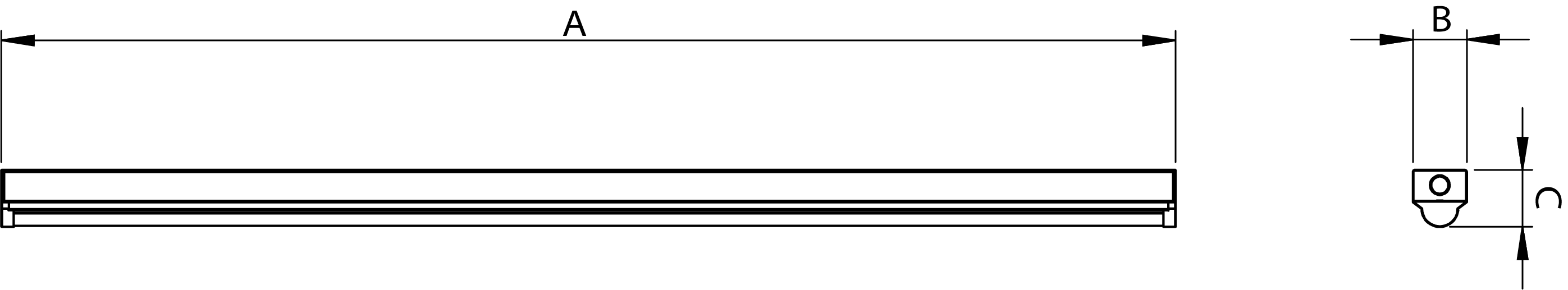

X1 BATTEN Line Drawing
Product Filter

If you don’t have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

No
No
Order Code Description Energy Class ERP
Instructions		 EPREL Site
XCBT2X1M3P 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR View
XCBT2X1S3 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency Energy Class C View Visit
XCBT2X1 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable Energy Class C View Visit
XCBT2X1P 600mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR View
XCBT4X1M3P 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR View
XCBT4X1M3 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency Energy Class C View Visit
XCBT4X1P 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR View
XCBT4X1 1200mm - CCT [3000K/4000K/6000K] + Wattage Selectable Energy Class C View Visit
XCBT5X1M3P 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR View
XCBT5X1M3 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency Energy Class C View Visit
XCBT5X1P 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR View
XCBT5X1 1500mm - CCT [3000K/4000K/6000K] + Wattage Selectable Energy Class C View Visit
XCBT6X1M3P 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency - Batten fit PIR View
XCBT6X1M3 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Emergency Energy Class C View Visit
XCBT6X1P 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable - Batten fit PIR View
XCBT6X1 1800mm - CCT [3000K/4000K/6000K] + Wattage Selectable Energy Class C View Visit

X1 BATTEN Line Drawing
